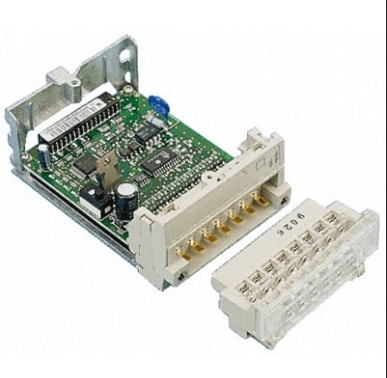

Schneider TSXDSZ08R5 Relay Output Module

Schneider TSXDSZ08R5 MODICON MICRO TSX MICRO - 8 OUTPUT RELAY

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This relay discrete output module has normally open contacts with 8 screw terminal block outputs. It is an output module with an output voltage of 19V AC to 264V AC, 10V to 34V DC, a current consumption of 85mA and a power dissipation of 1.5W. The response time is <10ms. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.

Technical specifcations for TSXDSZ08R5

Main

Range of product: Modicon TSX Micro automation platform

Product or component type: Relay discrete output module

Discrete output number: 8 screw terminal block

Contacts type and composition: NO

Complementary

Output voltage limits:19...264 V AC; 10...34 V DC

[Ith] conventional free air thermal current: 3 A

Power consumption in VA50 VA

24 V AC-12 resistive

110 VA 48 V AC-12 resistive

220 VA 110 V AC-12 resistive

220 VA 220 V AC-12 resistive

24 VA 24 V AC-15 inductive

24 VA 48 V AC-15 inductive

220 VA 220 V AC-15 inductive

110 VA 110 V AC-15 inductive

Power consumption in W

24 V DC-12 resistive

24 V DC-13 inductive

Response time: < 10 ms

Current consumption: 85 mA

Power dissipation in W: 1.5 W

Isolation voltage: 1500 V for 1 s

Insulation resistance: >= 10 mOhm
