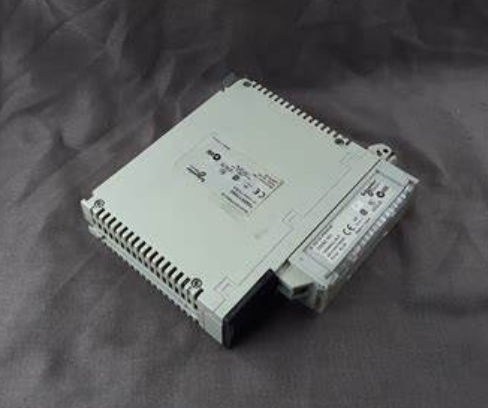

Schneider TSXDEY16A2 MODICON PREMIUM DISCRETE INPUT MODULE - 16 I 24 V AC
The Schneider TSXDEY16A2 is a discrete input module belonging to the Modicon Premium range by Schneider Electric. It acts as a bridge between the physical world of switches and sensors and the digital realm of a Programmable Logic Controller (PLC). Essentially, it reads 16 digital signals from external devices and converts them into electrical signals the PLC can understand and process.
Technical specifcations for TSXDEY16A2
Dimensions: 10.2cm*6.9cm*7.9cm
Weight: 0.6 kg
Description: Discrete Input Module
Main
Range of product: Modicon Premium Automation platform
Product or component type: Discrete input module
Discrete input number:16 resistive isolated conforming to EN/IEC 61131-2 type 2; 16 resistive isolated
Discrete input voltage: 24 V DC negative; 24 V AC
Network frequency: 50/60 Hz 47…63 Hz AC
Sensor power supply: 19…30 V DC; 20…26 V AC
Input compatibility: With 2-wire/3-wire proximity sensors conforming to EN/IEC 60947-5-2
Discrete input current: 15 mA AC; 16 mA DC
Complementary
Voltage state 1 guaranteed: <= 10 V DC; 10 V AC
Current state 1 guaranteed: >= 6.5 mA DC; 6 mA AC
Voltage state 0 guaranteed: >= 19 V DC; 5 V AC
Current state 0 guaranteed: <= 2 mA DC; 4 mA AC
Input impedance: 1600 Ohm at state 1
Response time: 15 ms; <= 20 ms
isalotion resistance: < 10 MOhm 500 V DC
Power dissipation: (1 W + 0.4 W x No of channels used) DC; 0.89 W AC
Electrical connection: Screw terminal
Marking: CE
Current consumption: 80 mA at 5 V DC
Module format: Standard
Net weight: 0.31 kg
Environment
Dielectric strength: 1500 V AC at 50/60 Hz
Standards
CSA C22.2 No 213 Class I Division 2 Group B
93/68/EEC
CSA C22.2 No 142
73/23/EEC
EN/IEC 61131-2
IEC 60664
89/336/EEC
UL 508
CSA C22.2 No 213 Class I Division 2 Group D
92/31/EEC
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 213 Class I Division 2 Group C
Ambient air temperature for operation: 0…60 °C
Ambient air temperature for storage: -25…70 °C
Relative humidity
10…95 % without condensation for operation
5…95 % without condensation for storage
Operating altitude: 0...2000 m
protective treatment: TC
IP degree of protection: IP20
Pollution degree: 2
