Schneider TSXDSY16T3 Solid-State Output Module

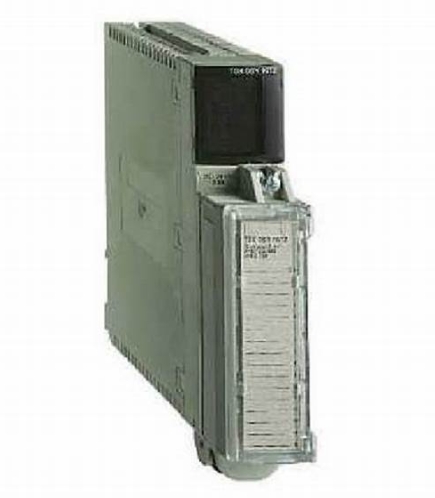

Schneider TSXDSY16T3 DISCRETE OUTPUT MODULE MODICON PREMIUM - 16 O SOLID STATE

The Schneider TSXDSY16T3 is a solid-state output module belonging to the Modicon Premium series of Programmable Logic Controllers (PLCs) by Schneider Electric. It essentially functions as a control unit for activating or deactivating external devices like motors, lamps, and valves through its 16 independent output channels.

Technical specifcations for TSXDSY16T3

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Discrete output module

Discrete output number: 16

Discrete output type: Solid state protected

Discrete output voltage: 48 V DC positive EN/IEC 61131-2 38...60 V

Discrete output current: 0.25 A

Complementary

Current per channel: 0.31 A

Maximum current per module: 4 A

Maximum leakage current: 0.5 mA at state 0

[Ures] residual voltage: 1.5 V

Response time: 1.2 ms

Switching frequency: 0.5/LI² Hz

Output overvoltage protection: By transil diode

Reverse polarity protection: Reverse mounted diode

Output overload protection: Electronic tripping on reactivation

Short-circuit protection: Electronic tripping on reactivation

Preactuator voltage detection threshold: 34 V

Minimum load impedance: 192 W

isalotion resistance: > 10 MOhm 500 V

Power dissipation: 2.4 W + 0.85 W x No of outputs x current per module

Marking: CE

Electrical connection: Screw terminal block

Current consumption: 80 mA 5 V DC

Module format: Standard

Net Weight: 0.75 lb(US) (0.34 kg)

Environment

Dielectric strength: 1500 V 50/60 Hz 60 s

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC

IP Degree of Protection: IP20

Pollution degree: 2

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage
