Schneider TSX3710028AR1 MODICON MICRO TSX MICRO 37 10 PLC CONFIGURATIONS

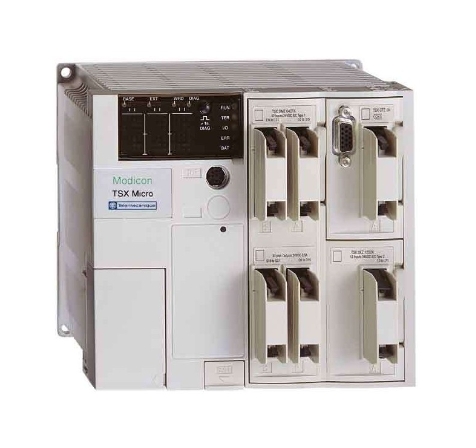

The Schneider TSX3710028AR1 is a programmable logic controller (PLC), specifically a Modicon TSX Micro 37 10 model, manufactured by Schneider Electric.
Technical specifcations for TSX3710028AR1
Main
Range of Product: Modicon TSX Micro automation platform
Product or Component Type: Modular base controller
Primary voltage: 100...240 V 90…264 V AC
Input current: 2 mA 60 A
Immunity to microbreaks: 20 ms
Output Current: 0.5 A
Complementary
Number of slots: 2
Module type:Screw terminal discrete I/O
Discrete input number: 16 115 V AC
Discrete output number:12 relay
Integrated connection type
1 serial link Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s
Memory description
Internal RAM 14 Kwords data
Flash 15 Kwords data
Maximum size of object areas
256 %Mi
1 %MWi internal words
128 %KWi constant words
Execution time per instruction
0.25 µs Boolean without PCMCIA card
4.81 µs arithmetic REAL floating without PCMCIA card
Execution time for 1 Kinstruction
3.03 100 % Boolean without PCMCIA card
0.25 65 % Boolean and 35 % numerical without PCMCIA card
Application structure
8 event tasks
1 master task
1 fast task
System overhead: 1.9 ms master task
Protection Type: Short-circuit; Overload protection
Network Frequency:50-60 Hz
Total useful secondary power: 24 W
Electromagnetic compatibility
Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3
Resistance to fast transient IEC 1000-4-4 level 3
Immunity to impulse waves IEC 1000-4-5
Damped oscillatory wave IEC 1000-4-12
Immunity to electromagnetic interference IEC 61131-2
Environment
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation for operation
5…95 % without condensation for operation
Operating altitude: 0...6561.68 ft (0...2000 m)
Width: 11.1 in (282.7 mm)
Height: 5.9 in (151 mm)
Depth: 6.0 in (152 mm)
Net Weight: 4.21 lb(US) (1.91 kg)
