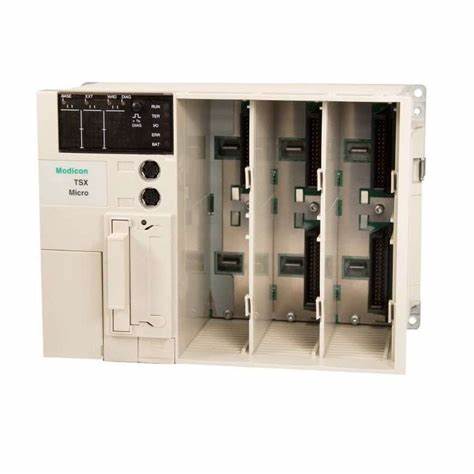

Schneider TSX3722001 Modular base controller
Specifications
| Main | |
| Range of Product | Modicon TSX Micro automation platform |
| Product or Component Type | Modular base controller |
| Primary voltage | 100...240 V 90…264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Output Current | 0.5 A |
| Complementary | |
| Number of slots | 3 |
| Analogue input type | 0...10 V 8 |
| Analogue output type | 0...10 V 1 |
| Counting input type | Discrete incremental counter 1 10 Hz |
| Incremental 1 10 Hz | |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data |
| Internal RAM 20 Kwords data | |
| Internal RAM (with PCMCIA card) 128 Kwords program and data | |
| Internal RAM 128 Kwords data storage | |
| Maximum size of object areas | 128 %KWi constant words |
| 256 %Mi | |
| 1 %MWi internal words | |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card |
| 4.5 µs arithmetic REAL floating without PCMCIA card | |
| 0.19 µs Boolean with PCMCIA card | |
| 4.5 µs arithmetic REAL floating with PCMCIA card | |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card |
| 0.27 65 % Boolean and 35 % numerical without PCMCIA card | |
| 4 100 % Boolean with PCMCIA card | |
| 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| Application structure | 1 fast task |
| 16 event tasks | |
| 1 master task | |
| System overhead | 2.3 ms master task |
| Protection Type | Overload protection |
| Short-circuit | |
| Network Frequency | 50-60 Hz |
| Total useful secondary power | 24 W |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3 |
| Electromagnetic field immunity test IEC 1000-4-3 level 3 | |
| Resistance to fast transient IEC 1000-4-4 level 3 | |
| Immunity to impulse waves IEC 1000-4-5 | |
| Damped oscillatory wave IEC 1000-4-12 | |
| Immunity to electromagnetic interference IEC 61131-2 | |
| Environment | |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation |
| 5…95 % without condensation for operation | |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Width | 13.4 in (341.4 mm) |
| Height | 5.9 in (151 mm) |
| Depth | 6.0 in (152 mm) |
| Net Weight | 3.86 lb(US) (1.75 kg) |
| Ordering and shipping details | |
| Category | US1PC1422556 |
| Discount Schedule | PC14 |
| GTIN | 3.38911E+12 |
| Returnability | No |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.9 in (15.0 cm) |
| Package 1 Width | 6.7 in (17.0 cm) |
| Package 1 Length | 9.4 in (24.0 cm) |
| Package 1 Weight | 4.039 lb(US) (1.832 kg) |
| Contractual warranty | |
| Warranty | 18 months |
