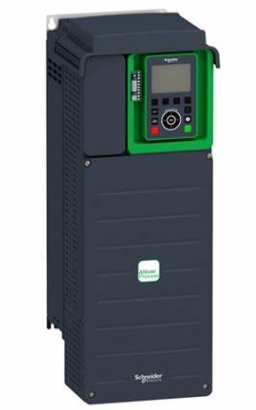

SCHNEIDER ATV930D22N4 variable speed drive
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 22kW/30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW/25hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater.It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Specifications:
Manufacturer : SCHNEIDER
Product No. : ATV930D22N4
Range of Product : Altivar Process ATV900
Device Application : Industrial Application
Product or Component Type : Variable speed drive
product destination :
- Synchronous motors
- Asynchronous motors
Product Specific Application : Process for industrial
variant :
- Standard version
- With braking chopper
Phase : 3 phase
Mounting Mode : Wall mount
Communication Port Protocol :
- Modbus serial
- EtherNet/IP
- Modbus TCP
[Us] rated supply voltage : 380...480 V - 15...10 %
Motor power kW :
- 22.0 kW normal duty
- 18.5 kW heavy duty
Continuous output current :
- 46.3 A 4 kHz normal duty
- 39.2 A 4 kHz heavy duty
EMC filter :
- Integrated
- With EMC plate option
IP degree of protection : IP21
Degree of protection : UL type 1
option module :
- Slot A communication module Profibus DP V1
- Slot A communication module PROFINET
- Slot A communication module DeviceNet
- Slot A communication module EtherCAT
- Slot A communication module CANopen daisy chain RJ45
- Slot A communication module CANopen SUB-D 9
- Slot A communication module CANopen screw terminals
- Slot A/slot B/slot C digital and analog I/O extension module
- Slot A/slot B/slot C output relay extension module
- Slot B 5/12 V digital encoder interface module
- Slot B analog encoder interface module
- Slot B resolver encoder interface module
- communication module Ethernet Powerlink
Discrete input logic : 16 preset speeds
Asynchronous motor control profile :
- Variable torque standard
- Optimized torque mode
- Constant torque standard
Synchronous motor control profile :
- Permanent magnet motor
- Synchronous reluctance motor
Maximum output frequency : 599 Hz
Switching frequency :
- 2...16 kHz adjustable
- 4...16 kHz with derating factor
Nominal switching frequency : 4 kHz
Line current : 39.6 A 380 V normal
Switching frequency :
- 2...16 kHz adjustable
- 4...16 kHz with derating factor
Nominal switching frequency : 4 kHz
Line current :
- 39.6 A 380 V normal duty)
- 34.1 A 380 V heavy duty)
- 34.4 A 480 V normal duty)
- 29.9 A 480 V heavy duty)
Apparent power :
- 28.6 kVA 480 V normal duty)
- 24.9 kVA 480 V heavy duty)
Maximum transient current :
- 55.6 A 60 s normal duty)
- 58.8 A 60 s heavy duty)
Network Frequency : 50-60 Hz
Prospective line Isc : 50 kA
