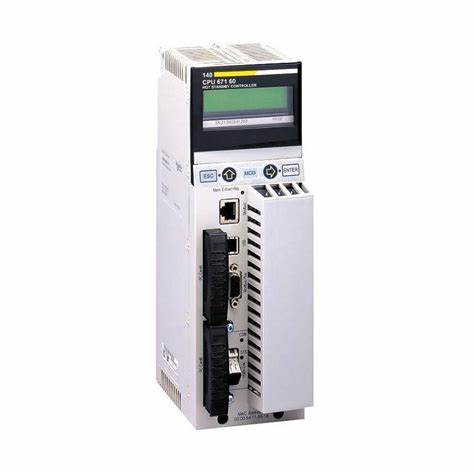

Schneider 140CPU67160C 140CPU67160C Product picture Unity Hot Standby processor
Unity Hot Standby processor with multimode Ethernet - 1024 kB - 266 MHz - coated
Specifications
| Main | |
| Range of product | Modicon Quantum automation platform |
| Product or component type | Unity processor |
| Complementary | |
| Mode of transmission | Multi mode |
| Clock frequency | 266 MHz |
| Number of slots | 16 |
| 10 | |
| 4 | |
| 2 | |
| 6 | |
| Number of racks | 2 - local rack(s) |
| Number of distributed I/O station | 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s) |
| Number of remote I/O station | 31 - 2 rack(s) per S908 remote I/O |
| 31 - 2 rack(s) per ethernet Quantum remote I/O | |
| 16 - 2 rack(s) per ethernet X80 remote I/O | |
| Discrete I/O number | 31744 inputs, 31744 outputs - remote |
| 8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | |
| 0 - local - forbidden in Hot Standby application | |
| Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | |
| 1984 inputs,1984 outputs - remote | |
| 0 - local - forbidden in Hot Standby application | |
| Application specific I/O | Counter |
| High-speed interrupt inputs | |
| Accurate time stamping | |
| Serial link | |
| communication service | Ethernet router |
| Number of optional modules | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 USB |
| 2 AS-Interface - distributed | |
| 4 AS-Interface - remote | |
| 6 Ethernet TCP/IP - local | |
| 6 Modbus Plus - local | |
| 6 Profibus DP - local | |
| 1 Modbus (RS232/485 Modbus/ASCII) | |
| Integrated connection type | 1 Modbus Plus with |
| 1 Modbus with | |
| 1 USB with | |
| 1 optic fibre with Hot Standby | |
| Checks | Hot standby |
| Process control | |
| Memory description | Expandable 7168 kB - program with PCMCIA card |
| Expandable 8 MB - file storage with PCMCIA card | |
| Internal RAM 1024 kB - 512 kB for data | |
| Switch function | Key switch memory port on/off |
| Application structure | 1 periodic fast task - forbidden in Hot Standby application |
| 128 I/O interrupt tasks - forbidden in Hot Standby application | |
| 128 interrupt tasks - forbidden in Hot Standby application | |
| 32 timer interrupt tasks - forbidden in Hot Standby application | |
| 4 auxiliary tasks - forbidden in Hot Standby application | |
| 1 cyclic/periodic master task - | |
| Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean |
| 10.07 Kinst/ms 65 % Boolean and 35 % numerical | |
| System overhead | 0.2 ms for fast task |
| 1 ms for master task | |
| Bus current requirement | 2500 mA |
| Local signalling | 1 LED (green) for Ethernet activity (COM) |
| 1 LED (red) for Ethernet collision | |
| Electrical connection | 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network |
| 1 connector, connector type: RJ45 for connecting Modbus bus | |
| 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km | |
| Environment | |
| protective treatment | Conformal coating Humiseal 1A33 |
| Product certifications | IEC-Ex |
| CE | |
| Misc (Marine) | |
| CSA | |
| UL | |
| ATEX zone 2 | |
| GOST | |
| Standards | HazLoc |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.0 cm |
| Package 1 Width | 19.0 cm |
| Package 1 Length | 32.5 cm |
| Package 1 Weight | 1.412 kg |
| Contractual warranty | |
| Warranty | 18 months |
