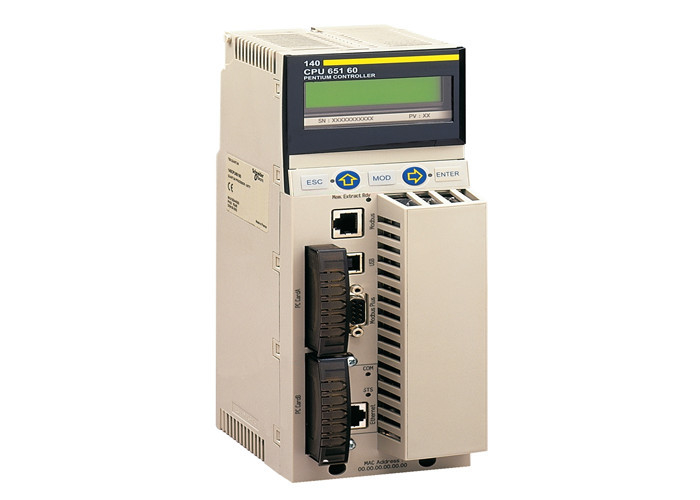

Schneider 140CPU65160C Unity processor
Modicon Quantum automation platform, Modbus Plus, 1024kB RAM, 266MHz
Specifications
| Main | |
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Unity processor |
| Complementary | |
| Clock frequency | 266 MHz |
| Number of slots | 16 |
| 6 | |
| 4 | |
| 10 | |
| 2 | |
| Number of racks | 2 - local |
| Number of distributed I/O station | 63 1 3 Modbus Plus |
| Number of remote I/O station | 31 - 2 S908 remote I/O |
| 31 - 2 ethernet Quantum remote I/O | |
| 16 - 2 ethernet X80 remote I/O | |
| Discrete I/O number | 31744 inputs, 31744 outputs - remote |
| 8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
| Unlimited (26 slots max) - local | |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | |
| Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus |
| 1984 inputs,1984 outputs - S908 remote I/O | |
| Unlimited (26 slots max) - local | |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | |
| Application specific I/O | Accurate time stamping |
| High-speed interrupt inputs | |
| Serial link | |
| Counter | |
| communication service | Ethernet router |
| Number of optional modules | 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 USB |
| 2 AS-Interface - distributed | |
| 4 AS-Interface - remote | |
| 6 Ethernet TCP/IP - local | |
| 6 Modbus Plus - local | |
| 6 Profibus DP - local | |
| 1 Modbus RS232/485 Modbus/ASCII) | |
| Integrated connection type | 1 Modbus Plus |
| 1 Ethernet TCP/IP | |
| 1 Modbus | |
| 1 USB | |
| Checks | Process control |
| Memory description | Expandable 7168 kB - program with PCMCIA card |
| Expandable 8 MB - file storage with PCMCIA card | |
| Internal RAM 1024 kB | |
| Switch Function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task - |
| 1 periodic fast task - | |
| 128 I/O interrupt tasks - | |
| 128 interrupt tasks - | |
| 32 timer interrupt tasks - | |
| 4 auxiliary tasks - | |
| Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean |
| 10.07 Kinst/ms 65 % Boolean and 35 % numerical | |
| System overhead | 0.2 ms fast task |
| 1 ms master task | |
| Bus current requirement | 2760 mA |
| Local signalling | for Ethernet activity (COM) 1 LED (green) |
| for Ethernet collision 1 LED (red) | |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network |
| 1 connector RJ45 for connecting Ethernet network | |
| 1 connector RJ45 for connecting Modbus bus | |
| Environment | |
| Product Certifications | Misc (Marine) |
| UL | |
| CSA | |
| CE | |
| GOST | |
| Standards | HazLoc |
| Ordering and shipping details | |
| Category | US1PC2118150 |
| Discount Schedule | PC21 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 in (11.0 cm) |
| Package 1 Width | 7.3 in (18.5 cm) |
| Package 1 Length | 12.8 in (32.5 cm) |
| Package 1 Weight | 3.22 lb(US) (1.46 kg) |
| Contractual warranty | |
| Warranty | 18 months |
