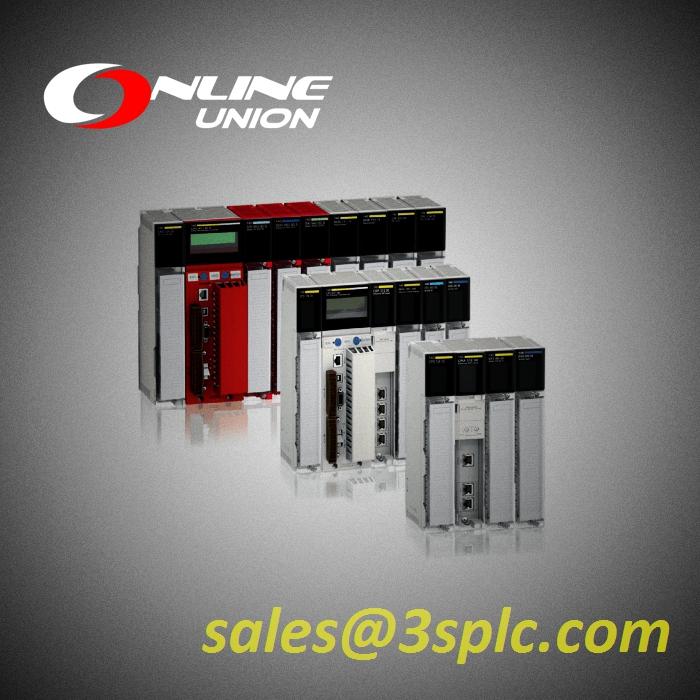

Schneider 140CPU43412U MODICON QUANTUM CPU UNITY PROCESSOR MODICON QUANTUM - 1056 KB - 66 MHZ
As an AC Drive, the ATV61HC13N4 offers precise motor control and energy-saving capabilities, making it ideal for various industrial processes. Its product offerings, tailored to specific applications, ensure optimal performance and reliability.
This drive delivers exceptional power and efficiency with a motor power of 132 kW (200 hp) at 380-480 V. It features voltage/frequency ratio control, which offers energy-saving options and precise control over motor operation.
Technical specifcations for 140CPU43412U
Dimensions: 31 cm x 16.5 cm x 5 cm
Weight: 0.6 kg

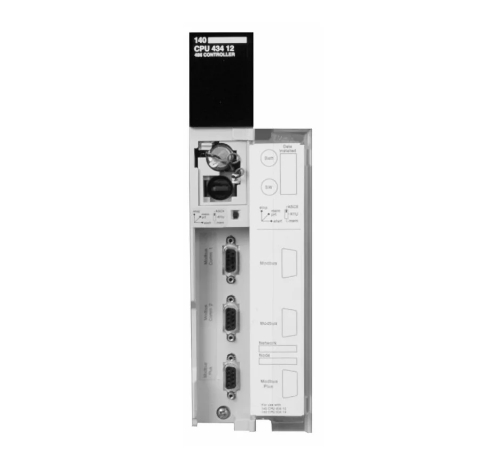

Description: Schneider Electric 140CPU43412U Unity Quantum 43412 CPU
Main
Range of Product: Modicon Quantum automation platform
Product or Component Type: Unity processor
Complementary
Clock frequency: 66 MHz
Number of slots: 2; 4; 10; 16; 6
Number of racks: 2 - local
Number of distributed I/O station: 63 1 3 Modbus Plus
Number of remote I/O station: 31 - 2 S908 remote I/O; 0 - 0 ethernet remote I/O
Discrete I/O number:
31744 inputs, 31744 outputs - remote
8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Unlimited (26 slots max) - local
Analogue I/O number: 500 inputs, 500 outputs - distributed - per network Modbus Plus
1984 inputs,1984 outputs - S908 remote I/O
Unlimited (26 slots max) - local
Application specific I/O:
Serial link
Counter
High-speed interrupt inputs
Accurate time stamping
Number of optional modules: 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections:
2 AS-Interface - distributed
2 Modbus RS232/485 Modbus/ASCII)
4 AS-Interface - remote
6 Ethernet TCP/IP - local
6 Modbus Plus - local
6 Profibus DP - local
Integrated connection type: 1 Modbus Plus; 2 Modbus
Checks: Process control
Memory description: Internal RAM 1056 kB
Switch Function:
Key switch memory start/stop memory protection
Slide switch communication port : ASCII/RTU/Memory
Application structure:
1 cyclic/periodic master task -
1 periodic fast task -
16 timer interrupt tasks -
64 I/O interrupt tasks -
64 interrupt tasks -
No auxiliary task -
Execution time per instruction:
0.1...0.27 µs floating points
0.1...0.27 µs on fixed-point arithmetic
0.12...0.585 µs Boolean
0.12...0.585 µs on word
Number of instructions per ms:
1.86 Kinst/ms 100 % Boolean
2.49 Kinst/ms 65 % Boolean and 35 % numerical
System overhead: 0.2 ms fast task; 1 ms master task
Bus current requirement: 1800 mA
Local signalling:
for communications are active on the Modbus Plus port (Modbus Plus) 1 LED (green)
for communications are active on the Modbus port (Modbus) 1 LED (green)
for CPU has been started and is solving logic (RUN) 1 LED (green)
for CPU has passed the power-up diagnostic tests (READY) 1 LED (green)
for write-protected memory (memory port) 1 LED (orange)
for battery needs replacing or is not present (BAT LOW) 1 LED (red)
for communications error on the Modbus Plus port (ERROR A) 1 LED (red)
Electrical connection:
1 female connector SUB-D 9 for connecting to the Modbus Plus network
2 female connectors SUB-D 9 for connecting to the Modbus bus
Environment
Product Certifications: CSA; CE; UL
Standards: HazLoc
