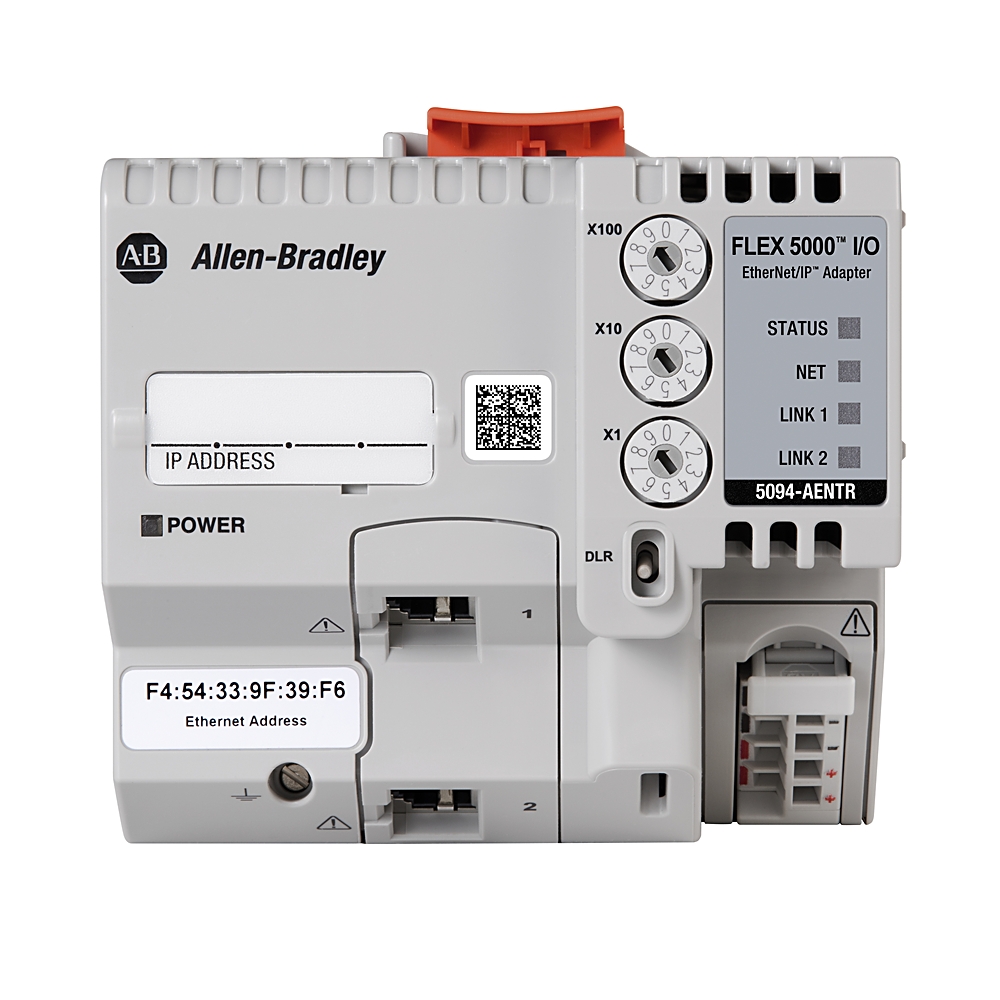

Allen bradley 5094-AENTR 5094 Ethernet Adapter 8 Modules RJ45
The Allen-Bradley 5094-AENTR is a communication adapter from the Flex 5000 I/O series. This module features Two (2) RJ45 ports for Ethernet connectivity with built-in LED status indicators, IP address rotary switches, PRP / DLR switch, and a removable power RTB. It supports Parallel Redundancy Protocol (PRP) and Device Level Ring (DLR) topology on both ethernet ports via the built-in PRP switch. This module is mainly used for implementing distributed I/O applications.
Technical specifications for 5094-AENTR
| Manufacturer | Allen-Bradley |
| Manufacturer: | Rockwell Automation |
| Brand | Allen-Bradley |
| Brand: | Allen-Bradley |
| Part Number | 5094-AENTRXT |
| Product Description: | ControlNet communication module |
| Adapter Type | FLEX 5000 EtherNet/IP Adapter with RJ45 Ports |
| Part Number: | 5094-AENTR |
| Voltage and current ratings, MP | 18...32V DC, 1250 mA |
| Voltage and current ratings, MP inrush | 18...32VDC, 3200 mA for 100 ms |
| Communication Port: | Two (2) Ethernet ports |
| Voltage and current ratings, backplane | 15V DC, 1130 mA |
| Ethernet Data Transfer speed: | 10 Mbps, 100 Mbps, 1 Gbps |
| Recommended external overcurrent protection | MOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC |
| Media: | Copper |
| Power dissipation, max | 5.1 W @ 18V DC |
| Compatible modules: | Flex 5000 I/O |
| Thermal dissipation, max | 17.4 BTU/hr @ 24V DC |
| Isolation voltage | 300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports |
| Wiring category | 1 - on power ports. 1- on Ethernet ports. |
| Supported topologies: | PRP / DLR |
| Wire type | Copper |
| LED status indicators: | STATUS; NET; LINK 1; LINK 2 |
| Wire size, power RTB | 0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1. |
| Mounting: | Zinc-plated, chromate-passivated steel DIN; EN60715 - 35 x 7.5 mm (1.38 x 0.30 in.) |
| Wire size, functional earth terminal | 2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only. |
| External power supply: | 18-32 VDC |
