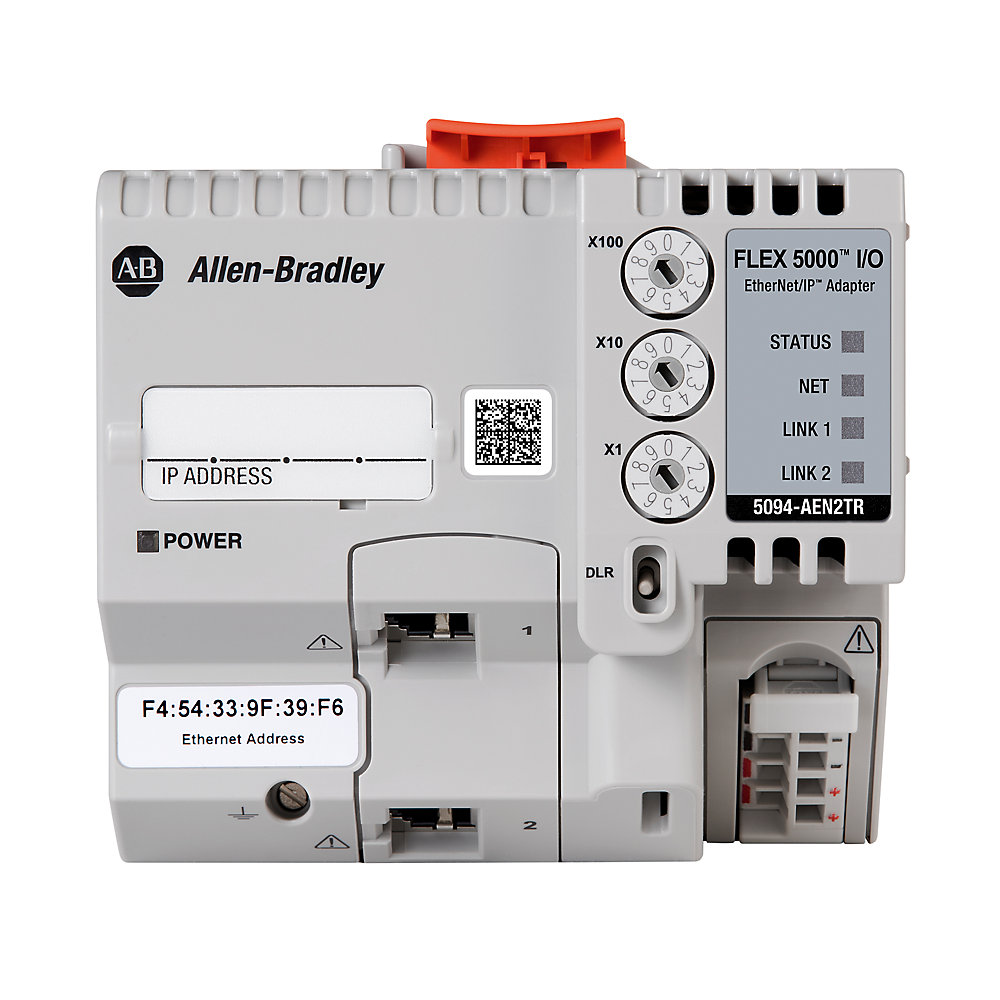

Allen bradley 5094-AEN2TR 5094 Ethernet Adapter 16 Modules RJ45
The Allen-Bradley/Rockwell Automation 5094-AEN2TR Ethernet adapter module is a FLEX 5000 series adapter module. It acts as an Ethernet adapter for FLEX 5000 series I/O modules. The 5094-AEN2TR Ethernet adapter module can serve up to 16 FLEX 5000 series I/O modules at a time. It supports copper media and it can support Ethernet speeds of up to 1 Gbps. The 5094-AEN2TR Ethernet adapter module supports star, linear, and DLR Ethernet network topologies.
Technical specifications for 5094-AEN2TR
Manufacturer | Allen-Bradley |
Brand | Allen-Bradley |
Part Number | 5094-AEN2TRXT |
Adapter Type | FLEX 5000 EtherNet/IP Adapter with RJ45 Ports |
Voltage and current ratings, MP | 18...32V DC, 1880 mA |
Voltage and current ratings, MP inrush | 18...32V DC, 5700 mA for 100 ms |
Voltage and current ratings, backplane | 15V DC, 1800 mA |
Recommended external overcurrent protection | MOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC |
Power dissipation, max | 6.2 W @ 18V DC |
Thermal dissipation, max | 21.1 BTU/hr @ 24V DC |
Isolation voltage | 300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports |
Wiring category | 1 - on power ports. 1- on Ethernet ports. |
Wire type | Copper |
Wire size, power RTB | 0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1. |
Wire size, functional earth terminal | 2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only. |
