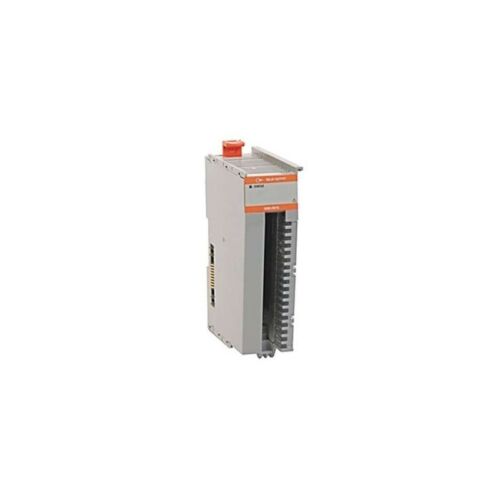

Allen bradley 5069-OW16 Compact 5000 Relay Output Module
The Allen-Bradley 5069-OW16 is a Compact 5000 relay output module. This module features Sixteen (16) Form A, Normally Open (N.O.) relay output channels in Two (2) groups of Eight (8) channels each. This module operates at 5-125VDC and 5-264VAC. It has a switching frequency of 1 operation every 3 seconds (0.3 Hz at rated load). This module has output current of 8 A per group and 16 A per module.
Technical specifications for 5069-OW16
Output Voltage Range | 5-125VDC; 5-264VAC |
Module Type | Relay output module |
Part Number/Catalog No. | 5069-OW16 |
Brand | Allen-Bradley |
Manufacturer | Rockwell Automation |
Series | Compact 5000 I/O |
No. of Inputs | Sixteen (16) Form A contacts |
Relay Ratings | 2 A resistive per channel @ 5…30V DC; 2 Aresistive per channel @ 5…264V AC, 50/60 Hz; 2 A general use per channel @ 5…250V AC, 50/60 Hz and 2 A @ 5…125V AC, ATEX/IECEx. |
Pilot duty rating | 5…240V AC, 50/60 Hz, C300 pilot duty per channel 5…125V DC, R150 pilot duty per channel |
Output current per group, max | 8:00 AM |
Output current per module, max | 16 A |
Output Delay Time | 10 ms |
Switching frequency | 1 operation every 3 seconds (0.3 Hz at rated load) |
Initial contact resistance, max | 30 m? |
Bounce time, mean | 500 µs |
Fusing | Outputs are not fused |
Expected contact life | 300K cycles resistive, 100K cycles inductive |
Number of Inputs | N/A |
Number of Outputs | 16 (2 Groups of 8) N.O. |
Voltage Category | N/A |
Input Voltage Range | N/A |
Power Dissipation | 3.0 Watts |
Enclosure Type | None (Open Style) |
Dimensions | 5.4 x 1.4 x 4.2 in (138 x 36 x 105 mm) |
Weight | 0.53 lbs (240 g) |
CIP Sync Supported | Yes |
Pattern Matching Supported | Yes |
