Allen bradley 5069-OF8 Compact 5000 Analog Output Module

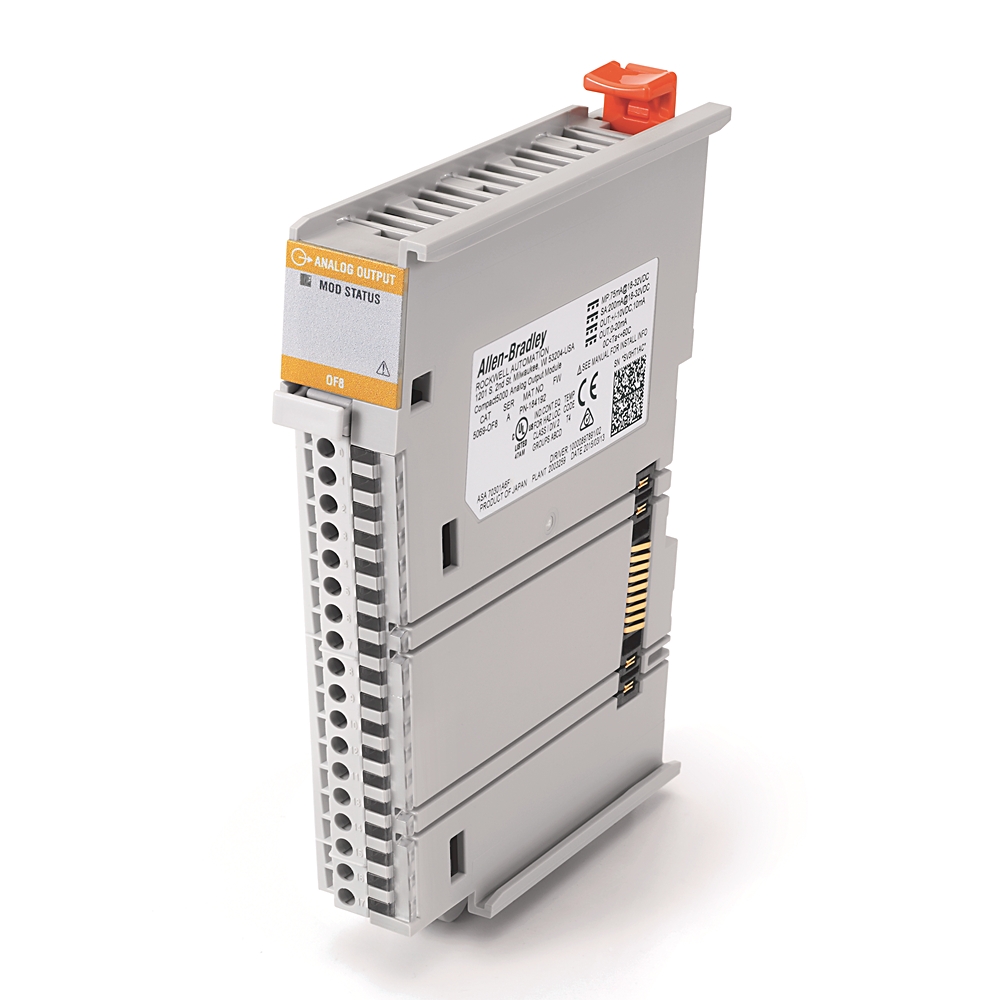

The Allen-Bradley 5069-OF8 is a Compact 5000 analog output module. This module features Eight (8) analog output channels, configurable for Voltage and Current signals. It delivers output Voltage signal ranges of ±10V; 0-10V and 0-5VDC and output Current range of 0-20 mA and 4-20 mA. This module uses R-Ladder DAC, monotonicity with no missing codes with 160bit resolution.
Technical specifications for 5069-OF8
Module Type | Analog output module |
Part Number/Catalog No. | 5069-OF8 |
Brand | Allen-Bradley |
Manufacturer | Rockwell Automation |
Series | Compact 5000 I/O |
No. of Inputs | Eight (8) channels |
Output Voltage signal | ±10VDC; 0-10VDC; 0-5VDC |
Output Current signal | 0-20 mA and 4-20 mA |
Conversion method | R-Ladder DAC, monotonicity with no missing codes |
Conversion time per channel | 25 µs |
Resolution | 16 bits across ± 10.5V - 320 µV/bit 16 bits across 10.5V - 160 µV/bit 16 bits across 5.25V - 80 µV/bit 16 bits across 21 mA - 320 nA/bit |
Open circuit detection | Current mode only |
Data format | IEEE 32-bit floating point |
Analog output ratings | +/–10V DC, 0…20 mA per channel |
MOD Power | 75 mA @ 18…32V DC |
MOD Power Passthrough, max | 9.55 A @ 18…32V DC |
SA Power | 250 mA @ 18…32V DC |
SA Power Passthrough, max | 9.95 A @ 18…32V DC |
Number of Inputs | N/A |
Number of Outputs | 8 Voltage or Current Outputs |
Voltage Category | N/A |
Input Voltage Range | N/A |
Output Voltage Range | +/- 10 Volts, 0-10 Volts, 0-5 Volts |
Power Dissipation | 5.3 Watts |
Enclosure Type | None (Open Style) |
Dimensions | 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm) |
Weight | 0.39 lbs (175 g) |
CIP Sync Supported | Yes |
Pattern Matching Supported | Yes |
