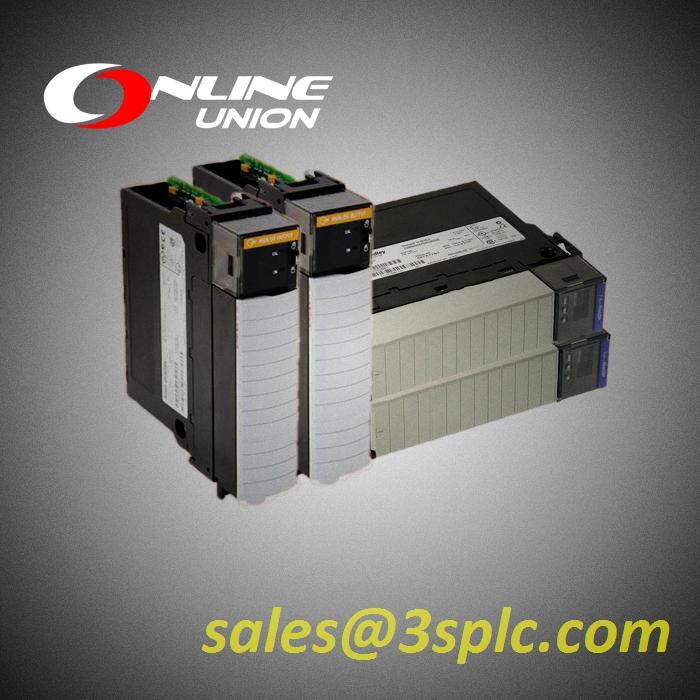

Allen bradley 5069-OB16 Compact 5000 DC Output Module
The Allen-Bradley 5069-OB16 is a Compact 5000 Discrete output module. This module features Sixteen (16) single group sourcing output channels that operates at voltage range of 10-32VDC. It provides output current of 0.5 A resistive per channel @ 10…32V DC and 8 A resistive per module @ 10…32V DC, max. This module may be used as Local I/O or distributed I/O component. It uses 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB
Technical specifications for 5069-OB16
| Module Type | DC Output module |
| Part Number/Catalog No. | 5069-OB16 |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Series | Compact 5000 I/O |
| No. of Outputs | Sixteen (16) DC output channels |
| Output Voltage signal, nominal | 24VDC |
| Output Voltage Signal range | 10-32VDC |
| Output current rating | 0.5 A resistive per channel @ 10…32V DC 8 A resistive per module @ 10…32V DC, max |
| Surge Current per point | 1 A max for 10 ms per point, repeatable every 2 s |
| Output delay time | ? 100 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A |
| Pulse width, min | 200 µs @ 0.5 A @ 25 °C (77 °F) |
| No. of output groups | One (1) |
| Removable Terminal Block | 5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB |
| Output states (Fault mode, fault state Program mode) | Hold Last State; On; Off (default) |
| Duration of fault mode per point | 1 s, 2 s, 5 s, 10 s, Forever (default) |
| Number of Inputs | N/A |
| Number of Outputs | 1 Group of 16 Channels (Sourcing) |
| Voltage Category | 12/24 Volts DC Source |
| Input Voltage Range | N/A |
| Output Voltage Range | 10-32 Volts DC |
| Power Dissipation | 3.25 Watts |
| Enclosure Type | None (Open Style) |
| Dimensions | 5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm) |
| Weight | 0.39 lbs (175 g) |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
