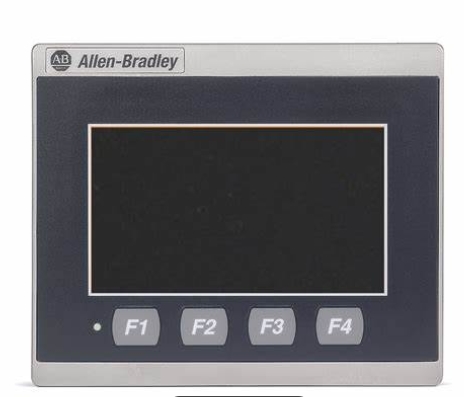

Allen Bradley 2711R-T4T PowerFlex
The 2711R-T4T terminal is an Allen-Bradley/Rockwell Automation HMI terminal. It is manufactured as part of the Allen-Bradley Panelview 800 series. The 2711R-T4T HMI terminal can be used to monitor and control applications that are being run by the control system that it is part of. The 2711R-T4T HMI terminal has a touchscreen and 4 function keys as its control options.
Technical specifications for 2711R-T4T
Display Size:4 inches
Brand:Allen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView 800 Graphic Terminals
Operator Input:Touch /Keypad
Display Type:Color transmissive TFT active matrix LCD, widescreen format
Backlight:40,000 hours
Display Area:95 x 53.9 mm (3.74 x 2.12 in.)
Resolution:480 x 272
Touchscreen:Analog Resistive, 1 million presses
Keypad:Four (function keys (F1 to F4)
Integrated ports:Ethernet, RS-232, RS422 / Rs485, USB
Integrated Memory:256 MB Flash Memory; 256 MB DDR RAM
Input Voltage range:18-32VDC
Part Number/Catalog No.2711R-T4T
Product LinePanelview 800
Display ColorColor TFT
Input TypeAnalog touch and function keys
Communication:Serial and Ethernet
Input Power:24 VDC
Memory:128 MB
Shipping Weight:6 lbs
Shipping Dimensions:14x11x8 inches
Series:A
Description:
The 2711R-T4T is an Allen-Bradley graphic operator terminal that is part of the 2711R Product bulletin. This specific catalog number is a PanelView Micro 800 operator terminal that features a colored display screen, touch and keypad input interface and a variety of embedded communication ports that provides flexibility of connection.
It supports offline configuration and comes with commissioning tools for rapid engineering of the Micro 800 operator terminal.
The 2711R-T4T features a 4-inch Color transmissive TFT active matrix LCD screen supporting widescreen format with viewing area of 95 x 53.9 mm (3.74 x 2.12 in.) and pixel resolution of 480 x 272. It is installed with a backlight that is expected to operate at a minimum of 40,000 hours. This operator terminal is provided with analog resistive touchscreen and keypad interface. The keypad buttons are composed of Four (4) function keys from F1-F4 which can be assigned with local and global configurations.
