Allen Bradley 2711P-T10C22A9P PowerFlex

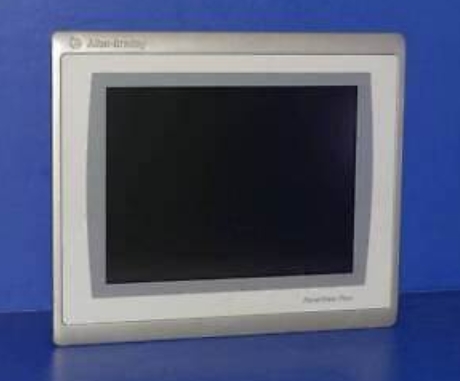

The Allen-Bradley 2711P-T10C22A9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 100-240VAC. It has a 10.4-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
Technical specifications for 2711P-T10C22A9P
Brand:Allen-Bradley
Display Size:10.1 in.
Part Number/Catalog No.:2711P-T10C22A9P
Manufacturer:Rockwell Automation / Allen-Bradley
Product Family:PanelView Plus 7 Performance terminals
Operator Input:Touch
Display Type:Color active-matrix TFT
Display Area:196 x 118 mm (7.7 x 4.6 in.)
Resolution:800 x 480 WVGA, 18-bit color graphics
Touch:Analog resistive Actuation: 1 million presses; operating force: 100 g
System Memory:512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
Communication ports:Two (2) Ethernet, Three (3) USB host
Power Consumption:105VA
Backlight:White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Product Line:Panelview Plus 7
Input Type:Touchscreen
Display Color:Color
Memory:512 Mb
Input Voltage:100-240VAC
Backlight:LED
Weight:5.03 LBS
Description:
The Allen-Bradley 2711P-T10C22A9P is a visualization component that is manufactured by Allen-Bradley. This electronic device is part of Allen-Bradley’s modern version of operator terminals. It is specifically part of the PanelView Plus 7 Performance Graphic operator terminals that is equipped with advanced functionalities and capabilities within its compact and scalable hardware.
The 2711P-T10C22A9P provides process visualization through the 10.4-inch display screen, having a viewing area of 211 x 158 mm (8.3 x 6.2 in.) and display resolution of 800 x 600 SVGA in 18-bit color graphics with aspect ratio of 4:3. It is equipped with a backlight with minimum operational half-life of 50, 000 hours with typical brightness of 300 cd/m2 (Nits). Operator input is made via the embedded analog resistive touchscreen that is rated up to 1 million presses with an operating force of 100 grams. It is recommended to operate the touchscreen with a gloved finger or plastic stylus to protect the surface of the screen from contaminants.
