Allen Bradley 2711P-T7C15A7 PowerFlex

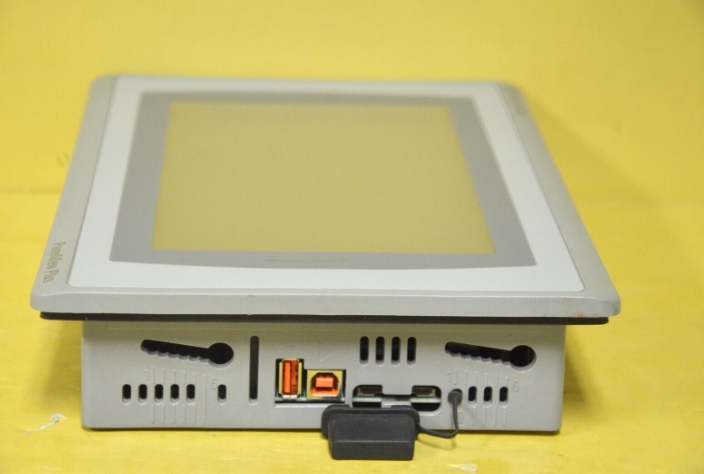

The 2711P-T7C15A7 operator interface terminal is an Allen-Bradley/Rockwell Automation Panelview Plus 700 series operator interface terminal. The 2711P-T7C15A7 operator interface terminal can be controlled through its touchscreen which supports color graphics and which has an antiglare overlay. The operating temperature range for this terminal is 32 to 131 degrees Fahrenheit and its storage temperature range is from -13 to 158 degrees Fahrenheit. The 2711P-T7C15A7 operator interface terminals communication network is the ControlNet network.
Technical specifications for 2711P-T7C15A7
Manufacturer:Rockwell Automation
Brand:Allen-Bradley
Part Number/Catalog No.:2711P-T7C15A7
Product Line:Panelview Plus 700
Display Size:6.5 in.
Display Color:Color
Input Type:Touchscreen
Communication:ControlNet
Input Power:85-264 VAC
Memory:256 MB
Backlight:2711P-RL7C
Communication Cable:1747-KFC15A
Shipping Weight:8 lbs.
Shipping Dimensions:14 x 11 x 8 in
Series:Series A, B, C, D, E, F, G
Product Lifecycle Status*:Discontinued/Obsolete
Description
The Allen-Bradley 2711P-T7C15A7 PanelView™ Plus 6 - 700 is a factory-assembled terminal with a high-luminosity display screen that is ideal for environments with low light. The display of the 2711P-T7C15A7 is conformally-coated. The screen is marine-certified with a built-in anti-glare coating. It also allows you to run HMI applications. This operating system provides an FTP server, a VNC server, and Active X controls. This terminal also has third-party device support. An additional feature in this version is the web browser. The 2711P-T7C15A7 also has a remote desktop connection feature that can monitor the works. You can also read your document on the terminal screen because it supports Microsoft file viewers and a PDF reader. The Allen-Bradley 2711P-T7C15A7 is equipped with a flash memory of 256 MB and with a 512 MB of RAM (with 79 MB of free user memory). The power input of this terminal is AC. The operating frequency is 50-60 Hz, the operating temperature is 0-55 °C, the non-operating temperature is -25-70 °C. The 2711P-T7C15A7 has a heat dissipation of 240 BTU/hr. The relative humidity of this terminal varies from 5-95% noncondensing. The operating and nonoperating shock are 15 g at 11 ms and 30 g at 11 ms, respectively.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
