Allen Bradley 2711P-T6C20D8 PowerFlex 700 Brand new

Allen Bradley  2711P-T6C20D8  PowerFlex

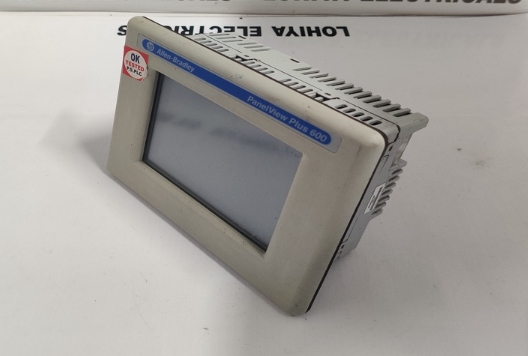

The Allen-Bradley 2711P-T6C20D8 is a Panelview Plus 6 600 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 5.7-inch colored display with embedded Ethernet, RS-232 and Two (2) USB ports. This operator terminal has touchscreen input interface.

Technical specifications for 2711P-T6C20D8

BacklightWhite LED, not replaceable; 25,000 hours min at 25 °C (77 °F)

Display Size：5.7 in.

Brand：Allen-Bradley

Manufacturer:：Rockwell Automation

Product Family:PanelView Plus 6 Operator Terminals

Product Type:PanelView Plus 6 600 Operator Terminals

Operator Input:Touch

Display Type:Color active-matrix TFT

Lifecycle status:End of life

Display Area:115 x 86 mm (4.5 x 3.4 in.)

Resolution:320 x 240, 18-bit color

Touch:Analog Resistive

Internal memory:256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)

Integrated ports:Ethernet, RS-232, 2 USB host

Input Voltage range:18-30VDC

Part Number/Catalog No.：2711P-T6C20D8

Product Line：Panelview 6 Plus

Display Colo：rColor

Input Type：Touchscreen

Communication：Ethernet and RS-232

Input Power：18 to 30 Volts DC

Memory：256 MB RAM

Communication Cable：2711-NC13

Shipping Weight：6 pounds

Shipping Dimensions：14 x 11 x 8 inches

Series：Series A and Series B

Flash Storage：512 MB

Description

The 2711P-T6C20D8 is a PanelView Plus 6 600 Terminal that is made by Allen-Bradley. The 2711P-T6C20D8 is an operator interface that allows the operators to monitor, manage, and display application status information about the machine. This terminal has modular components that allow for flexible configuration, installation, and upgrades. This unit is powered via 24 Volts DC input power. It comes with USB, RS-232, and Ethernet ports for communication with other devices. This is a common feature of all the Allen-Bradley PanelView Plus 6 HMI panels. The Allen-Bradley 2711P-T6C20D8 processor’s speed has increased from 350 MHz to 1 GHz and the screen transition rate is approximately 70% faster than the same rate in previous models. The system memory has been increased from 64 MB of RAM to 256 MB of RAM and the flash storage space has increased from 64 MB to 512 MB. The illumination power of the backlight displays has also increased. Additionally, the 2711P-T6C20D8 provides greater connectivity to a variety of external hardware options such as printers, mice, and keyboards. Optional communication modules can be ordered for additional network communication.
