Allen Bradley 2711P-T15C22D9P PowerFlex 700 Brand new

Allen Bradley  2711P-T15C22D9P   PowerFlex

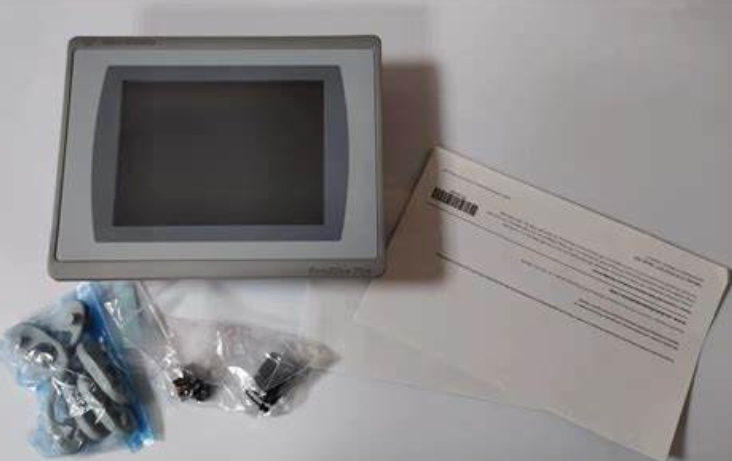

The Allen-Bradley 2711P-T15C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 15-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports

Technical specifications for 2711P-T15C22D9P

Display ：Size15 in.

Brand ：Allen-Bradley

Manufacturer: ：Rockwell Automation / Allen-Bradley

Product Family:PanelView Plus 7 Performance terminals

Product Type:PanelView Plus 7 15-inch Performance Terminals

Operator Input:Touch

Touch screen:Analog resistive touchscreen

Actuation rating:1 million presses

Operating force:100 grams

Display Type:Color active-matrix TFT

Display Area:304 x 228 mm (12.0 x 9.0 in.)

Resolution:1024 x 768 XGA, 18-bit color graphics

Backlight:White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable

Application memory:1GB system; User memory 512 MB

Communication ports:Two (2) Ethernet, Three (3) USB host

Input Voltage range:18-30 VDC

Touch:Analog resistive Actuation: 1 million presses; operating force: 100 g

System Memory:512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)

Power Consumption:50 W max (2.1 A at 24V DC)

Part Number/Catalog No. ：2711P-T15C22D9P

Product Line ：Panelview Plus 7

Input Type ：Touchscreen

Display Color ：Color

Memory ：512 Mb

Input Voltage ：24 VDC

Backlight ：LED

Weight ：8.14 LBS

UPC ：885630844718

UNSPSC ：43211903

Description:

The 2711P-T15C22D9P is a PanelView Plus 7 Performance operator terminal. This operator terminal primarily features a 15-inch colored TFT display screen, touch input interface and dual ethernet communication interface.

The display screen of this operator has a viewing area of 304 x 228 mm (12.0 x 9.0 in.) and display resolution of 1024 x 768 XGA that supports 18-bit color graphics. This display screen supports an aspect ratio of 4:3, coupled with a backlight with typical brightness of 300 cd/m2 (Nits). This backlight is made of a solid-state, white light emitting diode with minimum half-life operation of 50,000 hrs. when operated at 40 °C (104 °F). The touch interface is made of an analog resistive touch sensitive cells that is designed to be actuated at up to 1 million presses with an actuation force of 100 grams. It is recommended to operate this operator terminal with a gloved finger or plastic stylus. Screen management and maintenance may be conducted as needed. The display screen supports calibration, brightness and contrast adjustment as well as screen saver. These adjustments lengthen the operational life of the backlight thus, maximizing the terminal’s usage.
