Allen Bradley 2711P-T15C21D8S PowerFlex 700 Brand new

Allen Bradley  2711P-T15C21D8S   PowerFlex

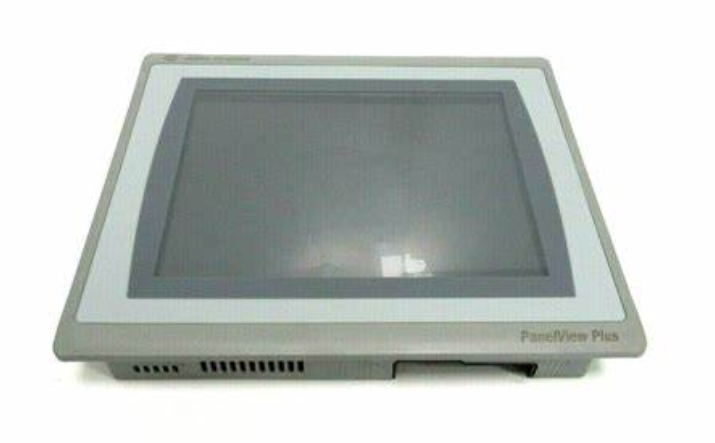

The Allen-Bradley 2711P-T15C21D8S terminal is a PanelView Plus 7 series terminal. It is a standard type of PanelView Plus 7 terminal that can display application data. The 2711P-T15C21D8S terminal’s screen is 15 inches wide with color graphics. It operates with DC power. The 2711P-T15C21D8S terminal comes with 512 MB of RAM and with 512 MB of non-volatile memory.

Technical specifications for 2711P-T15C21D8S

Brand：Allen-Bradley

Display Size：15 in.

Part Number/Catalog No.：2711P-T15C21D8S

Manufacturer：Rockwell Automation / Allen-Bradley

Product Family:PanelView Plus 7 Standard terminals

Operator Input:Touch

Display Type:Color active-matrix TFT

Display Area:304 x 228 mm

Resolution:1024 x 768 XGA, 18-bit color graphics

Touch:Analog resistive Actuation: 1 million presses; operating force: 100 g

System Memory:512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)

Communication ports:One (1) Ethernet, Two (2) USB host

Input Voltage range:18-30 VDC

Power Consumption:50 W max (2.1 A at 24V DC)

Backlight:White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable

Product Line：Panelview Plus 7

Input Type：Touchscreen

Display Color：TFT Color Display

Memory：512 Mb

Input Voltage：24 VDC

Backlight：LED

Weight：8.14 LBS

UPC：887172715440

Description:

The 2711P-T15C21D8S is a PanelView Plus 7 operator terminal. This operator terminal is manufactured by Allen-Bradley that is used to implement real-time operator interaction between and process. It is composed mainly of a visualization screen, an operator interface and communication port.

Specifically, the 2711P-T15C21D8S comes with a 15-inch, color Thin-Film-Transistor (TFT_ LCD screen with viewing area of 304 x 228 mm, display resolution of 1024 x 768 XGA, 18-bit color graphics and aspect ratio of 4:3. For operator interaction, the 2711P-T15C21D8S is provided with an analog resistive touchscreen interface with actuation lifespan of 1 million presses. This touchscreen interface is recommended to be operated at an actuation force of 100 grams, with a gloved finger or plastic stylus. With touchscreen input, operator is permitted to directly interact with the published runtime objects. Communication is established using the embedded One (1) Ethernet interface that supports linear topology. This port may be directly connected to a CompactLogix or ControlLogix ethernet port or via an external ethernet switch such as Allen-Bradley’s Stratix Ethernet switch. This operator terminal is powered by supplying a voltage supply input of 18-30VDC with nominal supply of 24VDC. It has a power consumption of 50 W max (2.1A at 24V DC) and Heat dissipation of 30 Watts or 102 BTU. It has an operating temperature of 0-55 °C (32-131 °F), operating altitude of 2000 M and operating shock and vibration of 15 g at 11 ms and 2g peak at 57…500 Hz, respectively.
