Allen Bradley 2711P-T10C4D9 PowerFlex

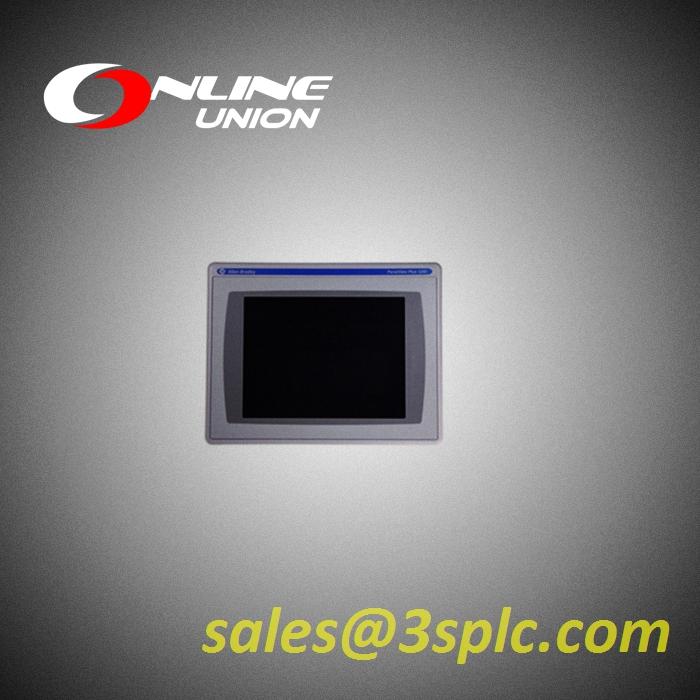

The 2711P-T10C4D9 is a PanelView Plus 1000 Operator Terminal from Allen-Bradley. This operator terminal is powered by an external 85-264 Volt AC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS-232, and two (2) USB communication ports.
Technical specifications for 2711P-T10C4D9
ManufacturerRockwell Automation
BacklightCCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable
Display Size10.4 inches
Part Number/Catalog No.2711P-T10C4D9
Product TypeOperator Terminals
BrandAllen-Bradley
Product Family:PanelView Plus 6 Compact Terminals
Product Category:PanelView Plus 6 1000
Display Type:Color active-matrix TFT
Display Area:211 x 158 mm (8.3 x 6.2 in.)
Resolution:640 x 480
Operator input:Touch
Input lifespan:1 million actuations
Internal memory:512 MB RAM; 512 MB non-volatile memory
Integrated ports:Ethernet, RS-232, 1 USB host
Input Voltage range:18-32VDC
SeriesA and B
Display ColorColor
Input TypeTouchscreen
CommunicationEthernet and RS-232
Input Power18 to 32 Volts DC
Memory512 MB RAM
Communication Cable2711-NC13
Shipping Weight8 pounds
Shipping Dimensions16 x 14 x 8 inches
Description
The 2711P-T10C4D9 is a PanelView Plus 6 operator interface manufactured by Allen-Bradley, a division of Rockwell Automation. The operator interface runs a human-machine interface (HMI) at machine level applications in an industrial environment. The device is used to display operator functions and it displays the information graphically. The 2711P-T10C4D9 features a monitor size of 10 inches and a TFT display. It comes with a colored TFT display with touchscreen input. Users can interface with machines through the color active-matrix LCD touchscreen, which has a 10.4-inch display size and display dimensions of 211 x 158 millimeters (8.3 x 6.2 inches). The touchscreen has a resolution of 640 x 480 and a luminous intensity of 300 candelas per square meter (cd/m2) (Nits). The 2711P-T10C4D9 has an analog resistive screen with a 1 million-press actuation rate at 10 to 110 G operational force. The 2711P-T10C4D9 supports standard communication with the EtherNet and the RS-232 port. It comes with an AC voltage rating of 85 to 264 Volts AC. It has a rating of 65 VA maxing out 160 VA. The 2711P-T10C4D9 has a battery-backed clock with a replaceable battery. The 2711P-T10C4D9 features various network media accessories including an RJ45 patch cord, unshielded twisted pair, and the Teal TPE cable. It also supports an RS-232 serial port for communication and an EtherNet port. The design of the PanelView modules features 3 modular components. These are the display module, the logic module, and the optional communication module. The components ensure flexible configuration, installation, and upgrading processes. The 2711P-T10C4D9 weighs 2.6 kilograms (5.7 pounds), it measures 248 x 329 x 55 millimeters (9.77 x 12.97 x 2.18 inches), and it is built with a NEMA Type 12 or 13 enclosure.
