Allen Bradley 2711P-K10C4A2 PowerFlex

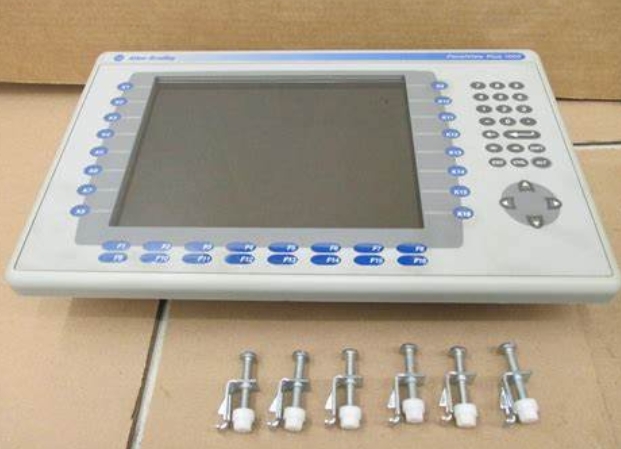

The Allen-Bradley/Rockwell Automation 2711P-K10C4A2 terminal is an operator interface terminal from the Allen-Bradley PanelView Plus 1000 series. It is controlled by a physical keypad. The 2711P-K10C4A2 operator interface terminal’s most common application functions can be saved with a number of programmable function keys. Each programmable function key can be programmed to save a specific function which can then be quickly activated during operation. The 2711P-K10C4A2 operator interface terminal supports the Ethernet network and its 10-inch display screen supports color graphics.
Technical specifications for 2711P-K10C4A2
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-K10C4A2
Product LinePanelview Plus 1000
Display Size10.4 in.
Display ColorColor
Input TypeKeypad
CommunicationEthernet and RS-232
Input Power85-264 VAC
Memory128 MB
Backlight2711P-RL10C
Communication Cable1761-NET-ENI
Shipping Weight10 lbs.
Shipping Dimensions18 x 14 x 8 in
SeriesSer A, B, C, D, and F
Product Lifecycle Status*Discontinued/Obsolete
Description
The obsolete Allen Bradley Panelview Plus 1000 2711P-K10C4A2 is an operator terminal that allows the user to interface with their machine. This HMI has a 10.4 in. Color Display screen. The user is able to control the operator terminal using the Keypad to input information and data. This unit is powered using 85-264 VAC power. This Panelview Plus has the following internal memory: 128 MB. This unit has an internal backlight replacement part number of 2711P-RL10C. The approximate shipping weight and dimensions are 10 lbs. and 18 x 14 x 8 in. The most common Series are: Ser A, B, C, D, and F. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. If another port is required, the 2711P-RN20 Ethernet communication module is available for the 700 to 1500 Panelview Plus terminals. Each module has a specific and unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and enables MDI/MDI-X connections. The parameters can be downloaded with the application.
