Allen Bradley 2711P-RP1 PowerFlex
The 2711P-RP1 module is a logic module from Allen-Bradley/Rockwell Automation. It is compatible with a variety of display modules and terminals from the Allen-Bradley Panelview Plus series. The 2711P-RP1 logic module is specifically designed to work with Panelview 700 to 1500 series display modules. It contains the memory and the processor that the connected display module uses to operate. A complete Panelview Plus 700 to 1500 series control system consists of a display module and a logic module like the 2711P-RP1 logic module, and the system can be customized with optional devices such as communication modules.
Technical specifications for 2711P-RP1
Product TypeLogic Module
CommunicationOne (1) RS232; One (1) Ethernet; Two (2) USB
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus Operator Terminals
Memory:64 MB Flash/ 64RAM
Compatible Hardware:PanelView Plus 700-1500
Available versions:Series A-G
Status indicators:Red and Green LED
Interfaces:Ethernet port, serial port, two USB ports, CompactFlash card slot
Support for RAM replacement / upgrade:Yes
Operating Temperature:0-55 Degree Celsius
Power input:24VDC
Power Dissipation:70 Watt
Part Number/Catalog No.2711P-RP1
SeriesPanelView Plus 700 to 1500 Logic Modules
Flash Memory64 MB
RAM Memory64 MB
Input Power24 Volts DC
FeaturesEthernet Port, Serial Port, 2 USB ports, and CompactFlash Card Slot
CompatibilityNot Compatible with PanelView Plus 6 Terminals
Safe Operating Temperature0 to 55 degrees Celsius
Description
The Allen-Bradley 2711P-RP1 is a PanelView Plus component. This component is specifically a logic module that hosts a variety of interfaces and contains the necessary memory areas and processor of the PanelView Plus operator terminal.

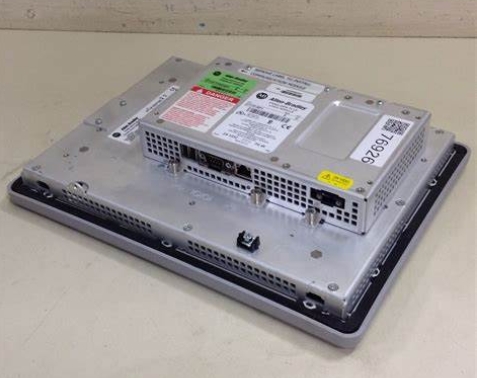

The 2711P-RP1 is attached at the back of the display module. This display module comes with an internal memory amounting to 64 MB Random Access Memory (RAM), used for the operator terminals runtime interface, and 64 MB Flash, used for storing files such as application backup, manuals, logs, recipes, reports and other system files.
The 2711P-RP1 Logic modules connects to the display module circuitry through the PCI slot. When installing this module, proper grounding must be observed as the components within are highly sensitive to static electricity.
