Allen Bradley 2711P-B6C20D PowerFlex 700 Brand new

Allen Bradley  2711P-B6C20D   PowerFlex

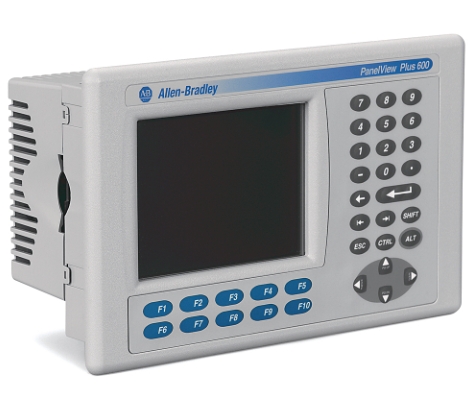

The Allen-Bradley 2711P-B6C20D is a PanelView Plus 6 600 color terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18 to 30 VDC. It has a 5.7-inch Colored Active Matrix Thin-Film Resistor (TFT) display. It has embedded keypad and touchscreen operator interfaces. It has One (1) RS232 port, Two (2) USB ports and One (1) Ethernet communication interface.

Technical specifications for 2711P-B6C20D

ManufacturerRockwell Automation

Part Number/Catalog No.2711P-B6C20D

BrandAllen-Bradley

Product Family:PanelView Plus 6 Graphic Terminals

Product Type:PanelView Plus 6 600

Operator Input:Keypad / Touch

Display Type:Color Active TFT screen

Display Size:5.7 inches

Display Area:111 x 84 mm (4.37 x 3.30 in)

Resolution:320 x 240

Backlight:25,000 hours min at 25 °C (77 °F)

Keypad:F1 to F10, 0…9, ., -, Backspace, Enter, Left and Right Tab keys, Shift keys

Touchscreen:Analog resistive, 4-wire

System Memory:256 MB RAM, 512 MB nonvolatile memory (approx. 73 MB free user memory)

Communication ports:One (1) Ethernet, One (1) RS-232, Two (2) USB

Input Voltage range:18 to 30 VDC; 24VDC nominal.

Power Consumption:15 W max (0.6 A at 24V DC), 9 W typical (0.375 A at 24V DC)

SeriesPanelView Plus 600

Module TypeOperator Interface Terminal

Input TypeKeypad/Touchscreen

Power Supply24 Volts DC

CommunicationRS-232, USB, 2 Ethernet ports

Description

The Allen-Bradley 2711P-B6C20D is a PanelView Plus 6 600 operator terminal. This operator terminal is part of the modern PanelView products of Allen-Bradley with modern specifications that meets current automation requirements and connectivity. This operator terminal is compact yet highly configurable and scalable to meet specific control needs. It remains a cost-effective visualization component.

The 2711P-B6C20D is a PanelView Plus 6 600 operator terminal is typically called as Human Machine Interface (HMI) by most personnel. This HMI mainly features a Color active-matrix Thin Film Transistor (TFT) with screen size of 5.7 inches, effective viewing area of 115 x 86 mm (4.5 x 3.4 in.) and resolution of 320 x 240, 18-bit color graphics. The screen has a rated brightness of 440 cd/m2 (Nits) with a non-replaceable backlight having an operational lifespan of 25,000 hours min at 25 °C (77 °F).
