Allen Bradley 2711P-RDB10C PowerFlex

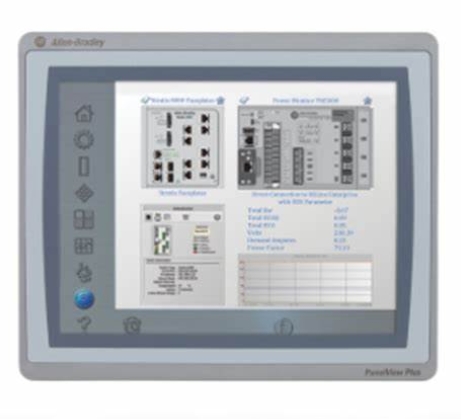

The Allen-Bradley 2711P-RDB10C is an Allen-Bradley display module that is compatible with PanelView Plus and PanelView Plus 6 1000 Touch and keypad operated terminals.
Technical specifications for 2711P-RDB10C
Display TypeColor active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
BrandAllen-Bradley
Manufacturer:Rockwell Automation / Allen-Bradley
Product Family:PanelView Plus Graphic Terminals
Description:Display Module
Compatibility:PanelView Plus 1000 / PanelView Plus 6 1000
Display Size:10.4 inches
Display Area:211 x 158 mm (8.31 x 6.22)
Resolution:211 x 158 mm (8.31 x 6.22) Resolution: 640 x 480
Display colors:18-bit color graphics
Anti-Glare overlay:not included
Luminance:300 cd/m2 (Nits)(3)
Keypad:F1 to F16; K1 to K16; Numeric; Navigation
Touch Input:Analog Resistive; 1 Million actuations
Part Number/Catalog No.2711P-RDB10C
Display Resolution640 x 480
Input TypeKeypad/Touchscreen
Communication PortsEthernet, RS-232, USB
Input Voltage (DC)18...32 volts DC
Input Voltage (AC)85..264 volts AC
Enclosure TypeNEMA Type 12
Marine CertifiedNo
Compatible Logic Modules2711P-RP1 through 2711P-RP9D
Description
The 2711P-RDB10C is an accessory item that is compatible with the PanelView Plus 1000 and PanelView Plus 6 1000 Operator terminals. This display module replaces the pre-installed display module that comes along with the mentioned operator terminals.
Display modules are replaced due to damage or when the expected operational lifespan of 50,000 hours is reached. This display module has a 10.4-inch Colored screen and comes with an embedded analog resistive touch screen interface and keypad.
The screen resolution of the 2711P-RDB10C is the same as the resolution supported by any PanelView Plus / Plus 6 1000 operator terminal which is 640 x 480 pixels.
