Allen Bradley 2711P-K7C4D1 PowerFlex

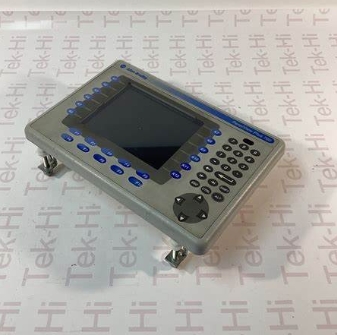

The Allen-Bradley 2711P-K7C4D1 terminal is a Panelview Plus 700 series operator terminal. It can be used to control applications and machines that do not have built-in control panels. The 2711P-K7C4D1 operator terminal has a keypad for control and data input. It is DC-powered with an operating voltage range from 18 to 30 Volts DC. The 2711P-K7C4D1 operator terminal can save its most common application functions with its programmable function keys.
Technical specifications for 2711P-K7C4D1
Manufacturer:Rockwell Automation
Part Number/Catalog No.:2711P-K7C4D1
Display Size:6.5 inches
Backlight:50,000 hr LED backlight life
Brand:Allen-Bradley
Product Family:PanelView Plus 700 Operator Terminals
Keypad function keys:22 function keys (F1…F10; K1…K12)
Actuation:1 million presses
Display Type:Color Active Matrix
Lifecycle status:Active
Display Area:132 x 99 mm (5.2 x 3.9 in.)
Resolution:640 x 480, 18-bit color graphics
Integrated ports:Ethernet, RS-232, 2 USB host
Input Voltage range:18-32VDC
Product Line:Panelview Plus 700
Display Color:Color
Input Type:Keypad
Communication:Ethernet and RS-232
Input Power:18-32 VDC
Memory:64 MB
Communication Cable:1761-NET-ENI
Shipping Weight:8 lbs.
Shipping Dimensions:14 x 11 x 8 in
Series:Series A, B, C, D, E, F, G
Product Lifecycle Status*:Discontinued/Obsolete
Description
The discontinued Allen Bradley Panelview Plus 700 2711P-K7C4D1 is an operator terminal that enables the user to interface with their machine. This HMI has a 6.5 in. Color Display. The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 18-32 VDC power. This unit has an internal memory of 64 MB. It supports EtherNet/IP (Ethernet Industrial Protocol) that is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
