Allen Bradley 2711P-K10C15D7 PowerFlex

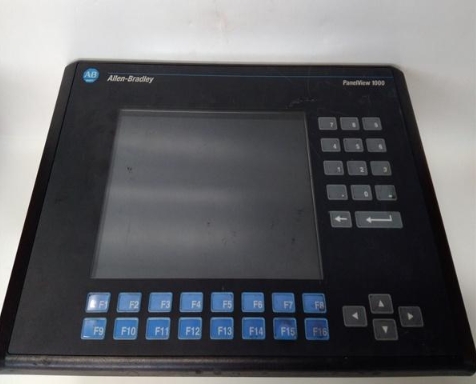

The 2711P-K10C15D7 operator interface terminal is a DC-powered and keypad-controlled operator interface terminal. It has been manufactured by Allen-Bradley/Rockwell Automation as a member of the Panelview Plus 1000 series. The 2711P-K10C15D7 operator interface terminal can operate with an input voltage range from 18 to 32 Volts DC. The display screen for this terminal is 10.4 inches wide and it supports full color graphics. The 2711P-K10C15D7 operator interface terminal weighs about 10 pounds and its dimensions are about 18 x 14 x 8 inches.
Technical specifications for 2711P-K10C15D7
Manufacturer:Rockwell Automation
Brand:Allen-Bradley
Part Number/Catalog No.:2711P-K10C15D7
Product Line:Panelview Plus 1000
Display Size:10.4 in.
Display Color:Color
Input Type:Keypad
Communication:ControlNet
Input Power:18-32 VDC
Memory:256 MB
Backlight:2711P-RL10C
Communication Cable:1747-KFC15A
Shipping Weight:10 lbs.
Shipping Dimensions:18 x 14 x 8 in
Series:Ser A, B, C, D, and F
Product Lifecycle Status*:Discontinued/Obsolete
Description
The obsolete Allen Bradley Panelview Plus 1000 2711P-K10C15D7 is an operator terminal that allows the user to interface with their machine. This HMI has a 10.4 in. Color Display screen. The user is able to control the operator terminal using the Keypad to input information and data. This unit is powered using 18-32 VDC power. This Panelview Plus has the following internal memory: 256 MB. This unit has an internal backlight replacement part number of 2711P-RL10C. The approximate shipping weight and dimensions are 10 lbs. and 18 x 14 x 8 in. The most common Series are: Ser A, B, C, D, and F. The ControlNet terminals are able to connect to single or multiple controllers on a unique ControlNet network. They support both scheduled and unscheduled access to controller data, as well as support for redundant cabling. The ControlNet terminals support symbolic CIP addressing when communicating with a ControlLogix system. Every terminal offers a Network Access port for local access to the ControlNet network.
