Allen Bradley 2711P-B15C6D1 PowerFlex
The Allen-Bradley/Rockwell Automation 2711P-B15C6D1 terminal is an operator interface terminal that is equipped with both a touchscreen and a keypad. It has been designed and manufactured as part of the Allen-Bradley Panelview Plus 1500 series. The 2711P-B15C6D1 operator interface terminal supports color graphics on its 15-inch touchscreen which the users can activate with bare hands, gloved hands, or a plastic stylus. The function keys on the keypad can be programmed to save the terminals most common application functions for quick activation. The 2711P-B15C6D1 operator interface terminal is DC-powered with an input voltage range from 18 to 32 Volts DC.
Technical specifications for 2711P-B15C6D1
Manufacturer:Rockwell Automation
Brand:Allen-Bradley
Part Number/Catalog No.:2711P-B15C6D1
Series:Panelview Plus 1500
Input Method:Keypad and Touchscreen Input
Communicaion Ports:DH+/RIO/DH-485 Communication ports
Power:24 VDC Input
Display Type:15 in. Color Display
Features:64 MB
Product Lifecycle Status*:Discontinued/Obsolete
Description

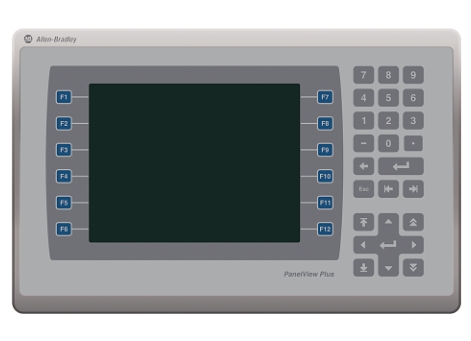

The Allen-Bradley 2711P-B15C6D1 PanelView Plus 1500 Standard Terminal is a DC-powered operator interface devices which provide an easy and effective interface to machines for convenient monitoring and control. This device comes with A rugged NEMA Type 12, 13, and 4X rated indoor enclosure, and with built-in integrated units for easy installation and setup. It has a 15-inch full-color TFT display screen with an analog resistive touchscreen which has an input capability, and it features a 12.0 x 9.0 inches display area with 1024 x 768 pixels in 18-bit color graphics as the default resolution. The 2711P-B15C6D1 also has a stainless steel domed membrane keypad which has 40 functional keys (F1 through F20, K1 through K20), navigational keys and alpha-numeric keys designed for use with fingers or gloved fingers, and which provides easy input of the user’s parameters without damaging the screen.
