Allen Bradley 2711P-B7C4D1 PowerFlex

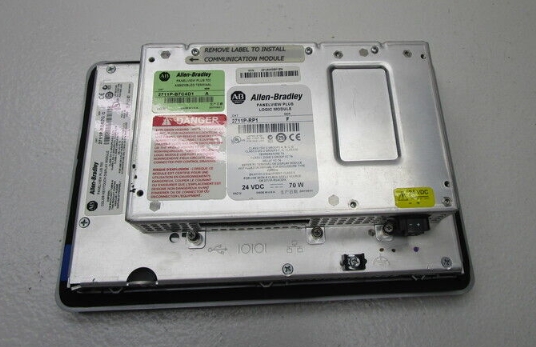

The Allen-Bradley 2711P-B7C4D1 is a PanelView Plus 700 color terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18 to 32 VDC. It has a 6.5-inch Colored Active Matrix Thin-Film Resistor (TFT) display. It has embedded keypad and touchscreen operator interfaces. It has One (1) RS232 port, One (1) Ethernet communication ports and Two (2) USB communication interface.
Technical specifications for 2711P-B7C4D1
Manufacturer:Rockwell Automation
Part Number/Catalog No.:2711P-B7C4D1
Display Size:6.5 inches
Backlight:CCFL 50,000 hours life, min
Brand:Allen-Bradley
Product Family:PanelView Plus Graphic Terminals
Operator Input:Keypad / Touch
Display Type:Color Active TFT screen
Display Area:132 x 99 mm (5.2 x 3.9 in.)
Resolution:640 x 480
Keypad:Function keys, numeric and navigation
Communication ports:One (1) Ethernet, One (1) RS-232, Two (2) USB
Touchscreen:Analog resistive
Actuation rating:1 million presses
Operating force:340g
Input Voltage range:18 to 32 VDC; 24VDC nominal
Product Line:Panelview Plus 700
Display Color:Color
Input Type:Keypad/Touchscreen
Communication:Ethernet and RS-232
Input Power:18-32 VDC
Memory:64 MB
Communication Cable:1761-NET-ENI
Shipping Weight:8 lbs.
Shipping Dimensions:14 x 11 x 8 in
Series:Series A, B, C, D, E, F, G
UPC:10662073071591
Product Lifecycle Status*:Discontinued/Obsolete
Description
The Allen-Bradley 2711P-B7C4D1 is an PanelView Plus 700 operator terminal. This operator terminal functions as a Human Machine Interface (HMI) used for implementing centralized monitoring and control of machines and processes. This device is equipped with colored graphic display, dual input interfaces such as keypad and touchscreen interfaces and a variety of communication ports.
Specifically, the 2711P-B7C4D1 comes with a 6.5-inch color display screen with resolution of 640 x 480 pixels and display area of 132 x 99 mm (5.2 x 3.9 in.). The display is made of Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) that is installed with a backlight having an estimated operational lifespan of CCFL 50,000 hours life, min. The dual input interface such as keypad are composed of Function keys, numeric and navigation buttons with actuation rating of 1 million presses and recommended operating force of 340 g. The touchscreen input interface is made of an analog resistive touchscreen interface with 1 million presses and operating force of 10-110 g.
The 2711-B7C4D1 is installed with a variety of communication interfaces such as One (1) RS232 communication port; One (1) Ethernet communication interface and Two (2) USB ports. The RS232 ports supports DF1 protocol and typically used for point-to-point and within the panel communication. The Ethernet port is used for networked communication and supports Ethernet I/P and Common Industrial Protocol (CIP). The embedded USB ports are used primarily for connecting external input peripherals such as mouse and keyboard.
