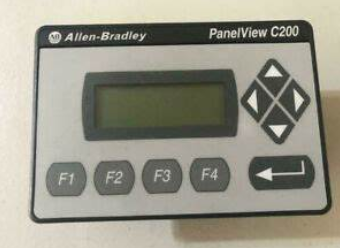

Allen-Bradley 2711C-F2M PanelView C200 Component Terminal.

Allen-Bradley 2711C-F2M  PanelView C200 Component Terminal.

Description For2711C-F2M

The Allen-Bradley 2711C-F2M is a PanelView C200 Component Terminal. This operator terminal features a Monochrome transflective FSTN passive matrix screen, with diagonal size of 2-inches, Display area of 49 x 14 mm (1.93 x 0.55 in.) and resolution of 122 x 32 pixels. screen size. It is operated via the embedded keypad and comes with built-in RS-232 (DH-485), RS-232 (DF1), RS-485 Multi-vendor communication available for Modbus and Siemens MPI devices.

The 2711C-F2 is ideally used with Allen-Bradley controllers specifically, MicroLogix, SLC500 and Micro800 product families. The embedded USB port also functions as the download port and permits connection of external input and output device such as keyboard or mouse, increasing operation convenience and flexibility.

Compatible terminal installation is via flush mounting to a NEMA / UL Type 4X (indoor) 12, 13, and IEC IP54, IP65 rated enclosures.

The panel installation and maintenance can be made easy with the quick-lever clips and mounting clamps. The C200 terminal’s easy interface through 2711C-F2M lets you design your own application with various indicators such as Green/Yellow for process identification. It is enclosed within a NEMA/UL Type 4X (indoor) 12, 13, and IEC IP54, IP65 with temperatures withstanding up to 122 degrees Fahrenheit.

The 2711C-F2M has input voltage from 18 Volts DC to 30 Volts DC. Be sure to never connect commons together as this will harm the device. It has a power consumption of 5 Watts, and certified as cULus Listed, CE marked, and C-Tick. The operator input has a total of 4 functional keys (Up, Down, Left, Right, and Enter) with 9 pin D-shell and RS 422/RS485 as connector communication ports. You can change the language of the terminal for configuration or diagnostic messages accordingly. MicroLogix, SLC, and Micro800 are the preferred controllers which are widely used with this terminal. Weighing less than 0.2 kilograms and a display size of 2 inches (49 x 14 millimeters), the PanelView Component C200 Terminal is quite handy and easy to use.

Product specification

Model Number:2711C-F2M

Product name:2711C-F2M

Payment :Paypal\TT\Western Union\ Trade Assurance

MOQ :1PCS

Package :Carton Package

Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex

Service :24 Hours Online Service

Lead time :5-7 Days

Condition :100% Original

Original factory:Allen-Bradley2711C-F2M In stock best price
