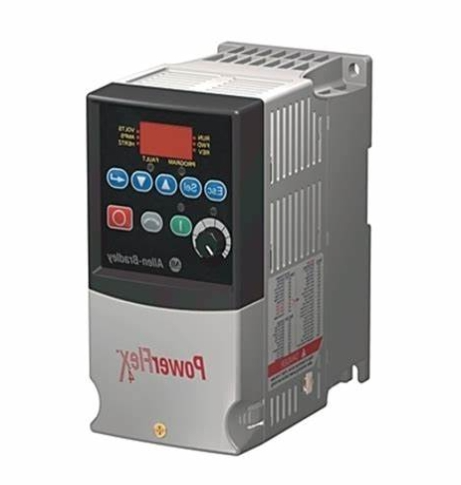

Allen Bradley 25A-D017N104 AC Drive
The 25A-D017N104 is a PowerFlex 523 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 7.5 kW or 10.0 HP for both normal and heavy-duty operation. The drive’s output Current is 17 Amperes with an IP20 NEMA / Open rated enclosure.
Product Details
BASE DRIVE INFORMATION
Bulletin Number: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Voltage Class:BASE DRIVE INFORMATION
Bulletin Number: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Voltage Class: 380...480V AC, 3 Phase
Output Current: 17 Amps
Enclosure Type: IP20 NEMA / Open Type
Frame Size: Frame C
Interface Module: Standard
EMC Filtering Options: No Filter
ACCESSORIES
Circuit Protection: No Circuit Protection 380...480V AC, 3 Phase
Output Current: 17 Amps
Enclosure Type: IP20 NEMA / Open Type
Frame Size: Frame C
Interface Module: Standard
EMC Filtering Options: No Filter
ACCESSORIES
Circuit Protection No Circuit Protection
Technical specifications for 25A-D017N104
Brand: Allen-Bradley
Part Number/Catalog No.:Technical specifications for 25A-D017N104
Brand: Allen-Bradley
Part Number/Catalog No.: 25A-D017N104
Output Current: 17 A
Manufacturer: Rockwell Automation / Allen-Bradley
Input Voltage: 380-480 VAC
Input Phase: 3-Phase
Output Voltage: 0-460VAC
Output Power: 7.5 kW or 10.0 HP
I/O: Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
Installation: Panel Mount / DIN Rail
Zero Stacking: Supported
Enclosure Rating: IP20 / NEMA UL Type Open
Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
PointStop Technology: Integrated
Integrated safety: Safe-Torque Off (STO) functionality
Built-in communication port: RS485
Series: PowerFlex 523
Voltage: Three Phase, 480 VAC
Enclosure Type: IP20 NEMA / Open Type
Interface Module: Standard
Frame Size: Frame C 25A-D017N104
Output Current: 17 A
Manufacturer Rockwell Automation / Allen-Bradley
Input Voltage: 380-480 VAC
Input Phase: 3-Phase
Output Voltage: 0-460VAC
Output Power: 7.5 kW or 10.0 HP
I/O: Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
Installation: Panel Mount / DIN Rail
Zero Stacking: Supported
Enclosure Rating: IP20 / NEMA UL Type Open
Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
PointStop Technology: Integrated
Integrated safety: Safe-Torque Off (STO) functionality
Built-in communication port: RS485
Series: PowerFlex 523
Voltage: Three Phase, 480 VAC
Enclosure Type: IP20 NEMA / Open Type
Interface Module: Standard
Frame Size: Frame C
