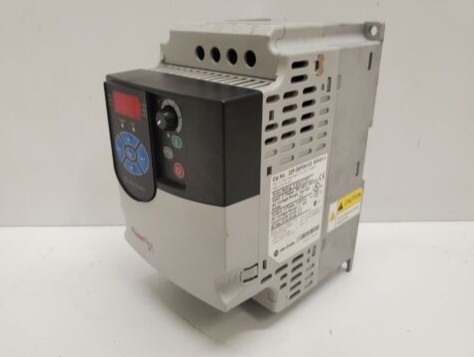

Allen Bradley 22F-D6P0N103 PowerFlex
The 22F-D6P0N103 is a PowerFlex 4M Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 2.2 kW or 3.0 HP. The drive’s output Current is 6.0 Amperes with an IP20, NEMA UL Type Open enclosure. It has an embedded Human Interface Module (HIM) without an IGBT brake and EMC filter.
Specifications
BrandAllen-Bradley
Part Number/Catalog No.22F-D6P0N103
ManufacturerRockwell Automation / Allen-Bradley
Input Voltage:380-480VAC
Input Phase:3-Phase
Output Voltage:0-460VAC
Output Current:6.0 A
Output Power:0.75 kW or 1.0 HP
I/O:Discrete Inputs: Five (5) sink / source inputs Discrete Outputs: One (1) Form C contacts Analog Input: One (1) 4-20 mA; One (1) 0-10VDC
Installation:Panel Mount
Enclosure Rating:IP20 / NEMA UL Type Open
Built-in communication port:RS485
Control Method:Volts per Hertz (V/Hz), Sinusoidal PWM
Internal PID:None
Human Interface Module:Integrated
Optional communication protocols:Dual Ethernet I/P; DeviceNet; ProfiBus DP
Product Line:Powerflex 4M
Amperage:6
Wattage:2.2 Kilowatt
Enclosure Type:Open- IP20
Input Power:480 Volts- Alternating Current
Phase:Three-Phase
Filter:Without CE Compliant Filter
Horsepower:3 Horsepower
Description:
Part #:22F-D6P0N103
Category:Drives
Subcategory:Drive
Weight:3.30 lbs
Drive Type:PowerFlex 4M,
Voltage Rating:480 VAC, 3 PHASE
Rating:6 AMP, 1.1 KW / 1.5 HP
Enclosure:PANEL MOUNT - IP 20 NEMA TYPE OPEN
HIM:FIXED KEYPAD
Emission Class:NOT FILTERED
BrakeNO :BRAKE IGBT
