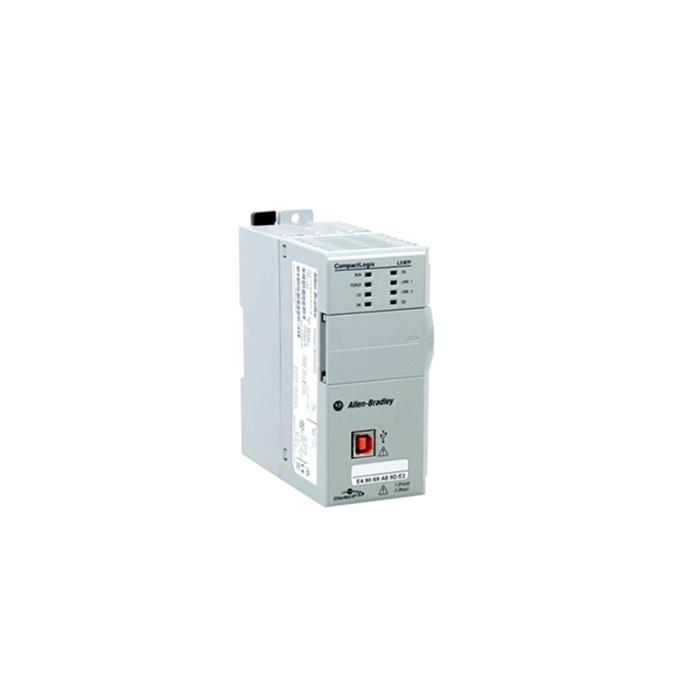

The 1769-L33ER CompactLogix 5370 controller by Allen-Bradley is a compact Logix controller. The 1769-L33ER can communicate with the controller or other devices through the Ethernet port. This controller has built-in user memory of 2 MB. It is packaged with an optional non-volatile memory card which amounts to 1GB, thay may be expanded up to 2GB. The 1769-L33ER can support Sixteen (16) I/O modules with a maximum of Three (3) I/O banks connected by appropriate expansion cables.
The Allen-Bradley 1769-L33ER belongs to the CompactLogix 5370 L3 controllers. This product series are 1769 CompactLogix controllers that is Allen-Bradley’s modular and cost-effective solution for medium sized applications. This controller features Logix platform capabilities and supports a degree of expansion far greater than the micro automation controller’s capabilities. The 1769-L33ER supports up to Sixteen (16) Local I/O module installation with the ability to use up to Three (3) I/O expansion banks. It is also provided with an embedded dual ethernet that act as an embedded switch and supports 10/100 mbps data rate with auto-negotiation capabilities.
The Ethernet communication port serves as the controller’s interface to the communication highway. It uses Ethernet I/P protocol to send and receive data to and from partner devices. Up to 32 Ethernet nodes may be connected at a time. Typical devices that may be communicated with this port are Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA), Distributed Control Systsems (DCS), gateways, converters, databases, enterprise tools and other products.
