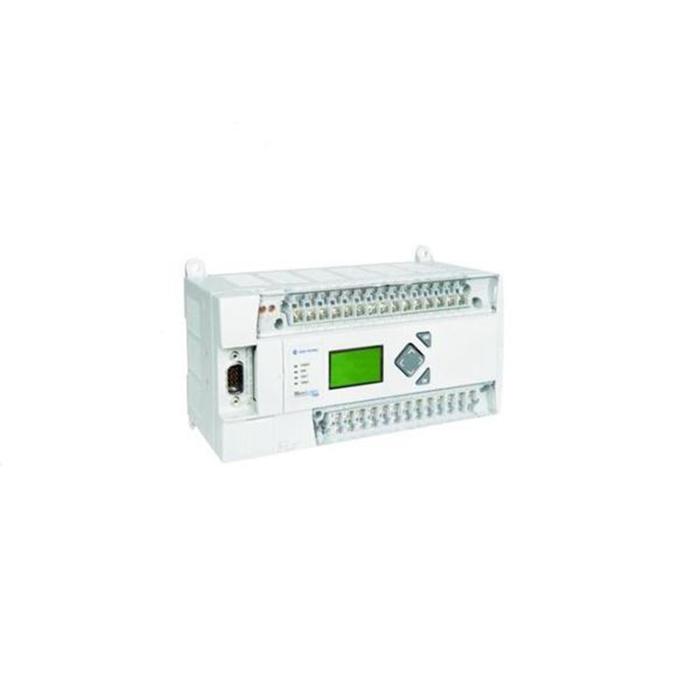

ALLEN BRADLEY 1766-L32BXB rockwell automation Allen Bradley A-B 1766 micrologix 1400 PLC controller Original Plc Module

The 1766-L32BXB is MicroLogix 1400 controller features a comprehensive Discrete Input and Output channels such as Twelve (12) Fast 24VDC, Eight (8) Normal 24VDC, Six (6) Relay, Three (3) Fast DC and Three (3) Normal DC outputs. This Discrete I/O variety enables the 1766-L32BXB to be used in application with mixed input voltage and mixed electrical loads. It also allows this controller to be used in applications with counting, totalizing and simple motion controls. Additionally, this controller may also provide the high-speed signals through the embedded high-speed output channels.

The 1766-L32BXB is also provided with a 10KB user program memory and another 10KB for user data. It supports recipe and log data. It is also embedded with a real-time clock for use in applications that require time-based or calendar-based actuations such as control of equipment sets and automatic mode change. Typical processes that use this type of logic are Heating Ventilation and Air Conditioning (HVAC) applications, Building Management Systems (BMS), Facilities Management Systems (FMS) and Water and Waster Treatment Processes.

This controller also has an internal battery back-up for memory retention of the Random Access Memory (RAM) and a back-up memory module for a non-volatile memory area. The high-speed input channels support up to Six (6) channels with100 kHz frequency. This controller also supports Pulse Train Output (PTO) with frequency of 100 kHz and Pulse Width Modulation (PWM) with frequency of 40 kHz. Up to Three (3) PTO and PWM channels may be configured, using RSlogix 500 and RSLogix 500 Micro Programming software.

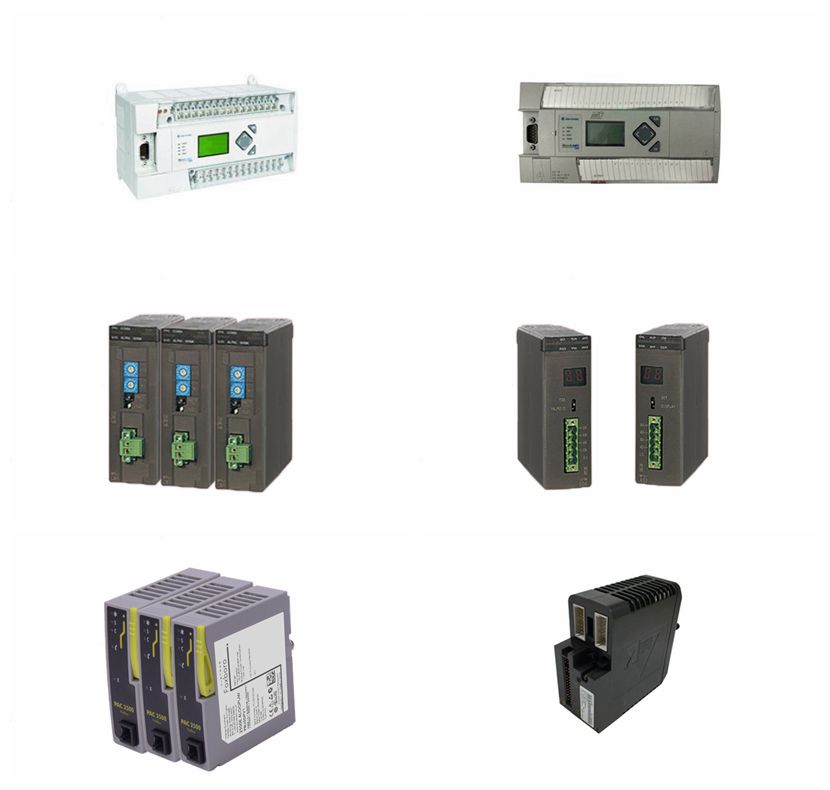

Allen Bradley Main Products:

1.SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150
