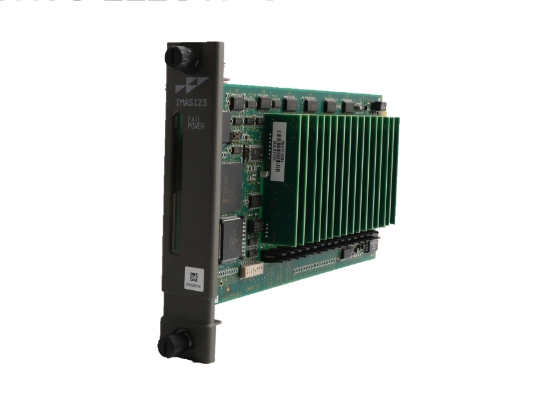

ABB IMASI23 Analog Input Slave Module
The lMASl23 Analog Input Module is a Harmony rack l/O module within theSymphony Enterprise Management and Control System. lt features 16 analoginput channels capable of handling isolated thermocouple, millivolt, RTDand high-level analog signals. Each channel includes a dedicated 24-bitanalog-to-digital converter and can be independently configured toaccommodate various input types. These inputs are crucial for monitoringand controlling processes, with the controller executing control functionswhile the l/0 modules manage input and output operations.
Technical specifcations for IMASI23
Product ID: IMASI23
ABB Type Designation: IMASI23
Catalog Description: 16 ch universal analog input slave mod
Long Description: 16 ch universal analog input slave mod
Product Net Depth / Length: 73.66 mm
Product Net Height: 360.68 mm
Product Net Width: 269.24 mm
Product Net Weight: 0.44 kg
Power Requirements
Operating Voltage: 5 VDC at 500 mA typical, maximum 750 mA
Overvoltage Category (lEC 61010-1):| for circuits above 150V, llfor circuits below 150V
Electromagnetic Compatibility
Conducted Transients,Electrostatic Discharge (lEC 61000-4-2,EN 61000-4-2): Contact ±6 kV, Air ±8 kV
Insulation Resistance: 100 MQ minimum (100/500 VDC)
Dielectric Voltage: 1.4 kV rms/lmin. or 1.95 kV DC/lmin.
Environmental Conditions
Ambient Temperature: 0°to 70°C(32° to 158° F)
Relative Humidity: 5% to 95% up to 55°C(131° F),5% to 45% at70°C(158° F)(non-condensing)
Altitude: Sea level to 3 km (1.86 miles)
Air Quality: Non-corrosive
