ABB IMASI03 AnalogInput Slave Module 15Vdc 4.0VA

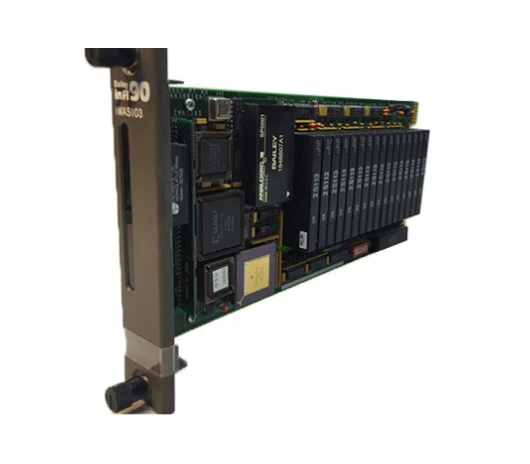

The lMASl03 is a single printed circuit board that occupies one slot in an INFl90 Module Mounting Unit (MMU). Two captive latches on the modulefaceplate secure it to the MMU. The slave module has three card edgeconnectors for external signals and power: Pl, P2, and P3. Pl connects to thesupply voltages. P2 connects the lMASl03 to the slave expander bus, overwhich it communicates with the MFP.
Technical specifcations for IMASI03
Type: Analog Input Slave Module
System: Infi 90
Number of Channels: 8
Input Range: -10 to +10 V, 0 to 20 mA, 4 to 20 mA
Accuracy: ±0.1% of reading
Resolution: 16 bits
Data Transfer Rate: Up to 2.5 Mbps
Isolation: 1500 VDC between channels and power supply
Power Supply: 24 VDC
Dimensions: 3.74" x 3.54" x 1.57" (95 x 90 x 40 mm)
Weight: 0.79 lbs (0.36 kg)
Features
High accuracy and resolution
Wide input range
Galvanic isolation
Programmable gain amplifier
Open input detection
Low drift channel voltage reference
Status LEDs for each channel
DIN rail mounting
Environment
Electromagnetic Compatibility: No values available at this time.
Radio Frequency Interference: Keep cabinet doors closed. Do not usecommunication equipment closer than 2 meters from the cabinet.
Ambient Temperature:0 to 700 C(32 to 1580 F)
Relative Humidity:
5% to 95% up to 550C(1310 F)(noncondensing)。
5% to 45% at 700C(1580 F)(noncondensing)
Atmospheric Pressure: Sea level to 3 km (1.86 miles) (86 kPa to 108 kPa)
Air Quality: Noncorrosive
