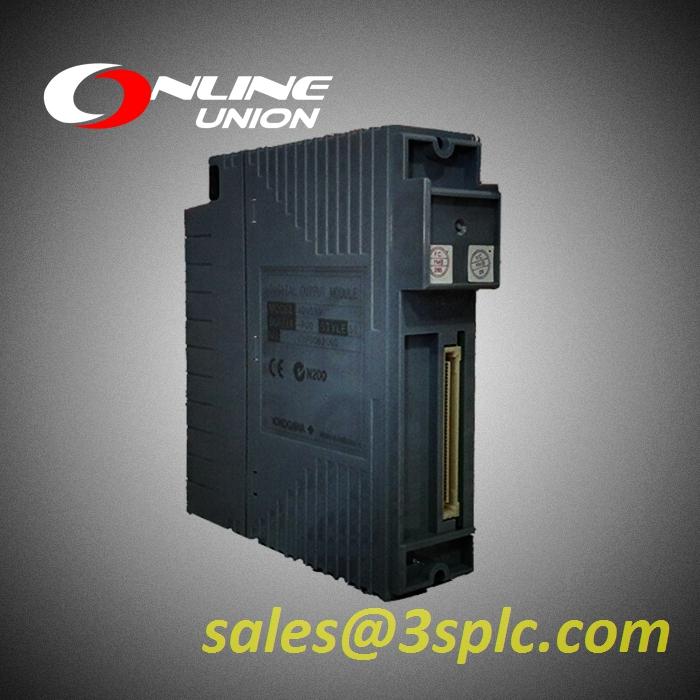

Yokogawa AAT141-S00 16-Channel TC/mV Input Module
The YOKOGAWA AAT141-S00 is an analog input module that is designed to convert a variety of analog signals, such as voltage, current, and temperature, into digital signals that can be read by a control system.
Model AAT141-S00 Overview:
Number ofInput channels: 16 isolated channels
Input signal Types:Thermocouples (TC):JlS C1602:1995,IEC584:1995 -Types J, K, E, B, R, S,T, N
Millivolts(mV):-100 to 150 mV, -20 to 80 mV
Resistance Temperature Detector(RTD): JS C1604:1997,1EC751:1995Pt100 3-wire type
AllowableInput Voltage:±5 V
Withstanding Voltage:1500VAC between input and system
Input Resistance:2 M(or larger(both power on and off
Accuracy:
TC: ±30 μV
mV:+80 uV(-100 to 150 mV),±30 uV(-20 to 80 mV)。
RTD:+120 m2
Allowable Total Resistance of signal Source Plus Wiring: 1000 (2 or less
Reference Junction Compensation Accuracy: Within +l °C
Temperature Drift:
±80 μV/10“C (for -100 to 150 mVinput)
±30 μV/10 °C (for TC and -20 to 80 mVinput)
±120 mΩ2/10'C (for RTD input)
Data Update Period:l second
Burn-out Detection:
All channels can be set together
Detection time:60 seconds
Maximum Current Consumption: 450 mA (5 V DC)
Weight: 0.3 kg
