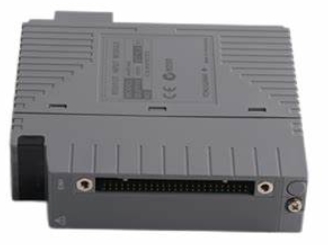

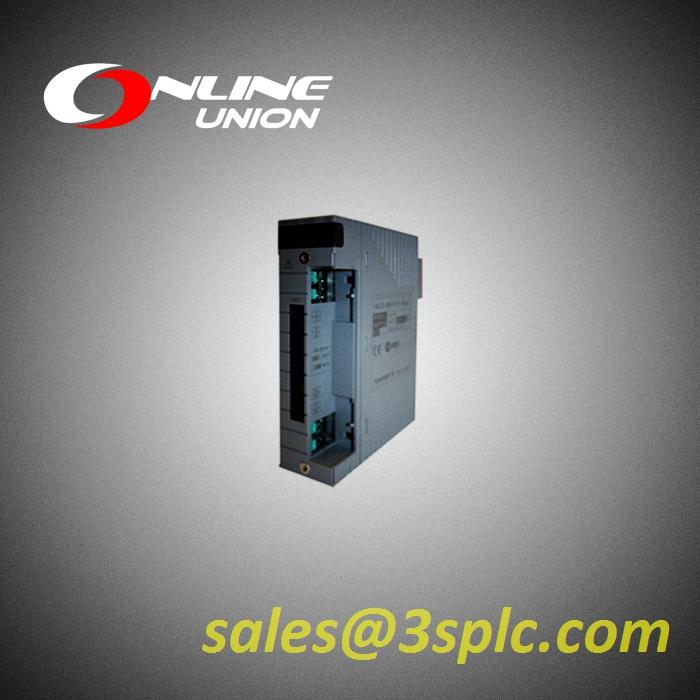

Yokogawa AAR145-S00 16-channel RTD/POT Input Module
The YOKOGAWA AAR145-S00 is an analog input module that is part of the company's CENTUM VP/CS 3000 control system. It is used to connect analog field devices to the control system and to convert their signals to digital data. The AAR145-S00 can be used to input a variety of analog signals, including voltage (1 to 5 V, -10 to 10 V), current (4 to 20 mA), and temperature (RTD, TC). It has a high data update rate and a high input resolution, which makes it suitable for applications where fast response time and accurate data are important.
Detailed Specifications:
Model:AAR145-S00
Number ofinput Channels: 16,isolated
supported signal Types: mV, thermocouple (TC), RTD, and potentiometer(POT
lsolation: Between field and system, and between each channelWiringResistance:150(2or less(per wire)
Measurement Current:RTD:1 mA
Data Update Period:l s
Burn-out Detection:
Setting: Not available/available (UP/DOWN)
Detection Time: 60 s
Temperature Drift:
RTD:±0.3 Q/10°C
POT:±0.4%/10°C
Maximum Current Consumption: 350 mA (5 V DC)
Weight: 0.3 kg
External Connection: Dedicated cable (KS8/AKB335)
