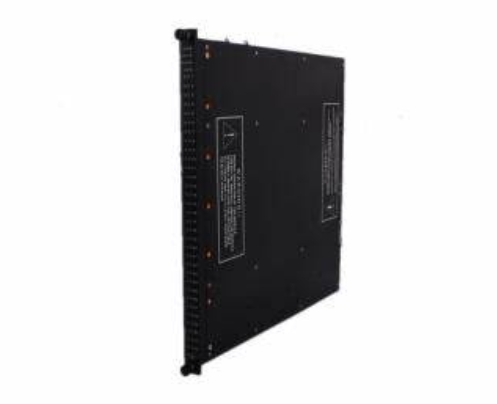

Triconex 3625 DIGITAL 24VDC OUTPUT MODULE INVENSYS SYSTEM
TMR (Triple Modular Redundant) Digital Input (DI) modules offer robust processing capabilities for handling data inputs. Each module comprises three isolated input channels, with independent data processing. The microprocessor on each channel scans input points, assembles data, and transmits it to the Main Processors as needed. Input data is voted at the Main Processors before processing to ensure utmost integrity. Critical signal paths are triplicated to ensure safety and availability.
Technical specifcations for Triconex 3625
Model Number: 3625
Nominal Voltage: 24 VDC
Type: TMR, Supervised/Non-Supervised DO
Output Signals: 32, commoned
Voltage Range: 16-32 VDC
Maximum Voltage: 36 VDC
Voltage Drop: < 2.8 VDC @ 1.7A, typical
Power Module Load: < 13 watts
Current Ratings, Maximum: 1.7A per point; 7A surge per 10 ms
Minimum Required Load: 10 mA
Load Leakage: 4 mA maximum
Fuses (on Field Termination): n/a—self-protecting
Point Isolation: 1,500 VDC
Diagnostic Indicators On or Off State Module Status Field Alarm: 1 per point; PASS, FAULT, LOAD, ACTIVELOAD (1 per point )
