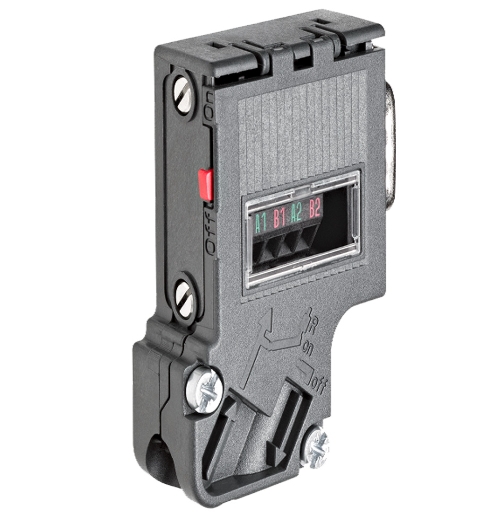

Siemens 6ES7972-0BB61-0XA0 PROFIBUS connector

Siemens 6ES7972-0BB61-0XA0 SIMATIC DP With PG receptacle

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 35 degree cable outlet, Insulation displacement method FastConnect, With PG receptacle 15.8x 54x 39.5 mm (BxHxD)

Technical specifcations for 6ES7972-0BB61-0XA0

suitability for use: for connecting PROFIBUS nodes to the PROFIBUS bus cable

Transfer rate

transfer rate / with PROFIBUS DP: 9.6 kbit/s ... 12 Mbit/s

Interfaces

number of electrical connections

● for PROFIBUS cables: 2

● for network components or terminal equipment: 1

type of electrical connection

● for PROFIBUS cables: Integrated insulation displacement contacts for 2-wire PB FC installation cables

● for network components or terminal equipment: 9-pin sub D connector

type of electrical connection / FastConnect: Yes

Mechanical data

design of terminating resistor: Resistor combination integrated and connectable via slide switch

material / of the enclosure: plastic

locking mechanism design: Screwed joint

Design, dimensions and weights

type of cable outlet: 35 degree cable outlet

width: 15.8 mm

height: 54 mm

depth: 39.5 mm

net weight: 34 g

Ambient conditions

ambient temperature

● during operation: -25 ... +60 °C

● during storage: -40 ... +70 °C

● during transport: -40 ... +70 °C

protection class IP: IP20

Product features, product functions, product components / general

product feature

● silicon-free: Yes

product component

● PG connection socket: Yes

● strain relief: Yes

Standards, specifications, approvals

certificate of suitability

● RoHS conformity: Yes

● UL approval: Yes

reference code

● according to IEC 81346-2: XF
