Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300

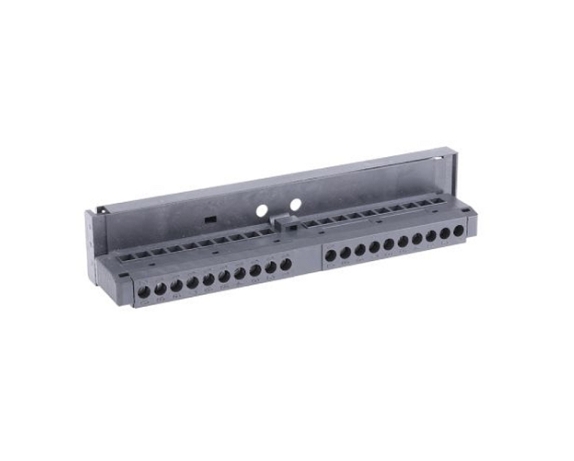

SIMATIC S7-300, Front connector for signal modules with screw contacts, 20-pole
Technical specifcations for 6ES7392-1AJ00-0AA0
General information
Product type designation: Front connector
Ambient conditions
Ambient temperature during operation
● min: 0 °C
● max: 60 °C
Ambient temperature during storage/transportation
● min: -40 °C
● max: 70 °C
Accessories
Belongs to product: S7-300
Connection method
Connection I/O signals
● Connection method: Screw terminals
● Number of lines per connection: 1; or combination of 2 conductors of up to 1.5 mm² (total) in a shared ferrule
Conductor cross-section in mm²
— Connectable cable cross-sections for massive cables, min: 0.25 mm²
— Connectable cable cross-sections for massive cables, min: 1.5 mm²
— Connectable cable cross-sections for flexible cables without end sleeve, min: 0.25 mm²
— Connectable cable cross-sections for flexible cables without end sleeve, max: 1.5 mm²
— Connectable cable cross-sections for flexible cables with end sleeve, min: 0.25 mm²
— Connectable cable cross-sections for flexible cables with end sleeve, max: 1.5 mm²
Conductor cross-section acc. to AWG
— Connectable cable cross-sections for massive cables, min: 24
— Connectable cable cross-sections for massive cables, min: 16
— Connectable cable cross-sections for flexible cables without end sleeve, min: 24
— Connectable cable cross-sections for flexible cables without end sleeve, max: 16
— Connectable cable cross-sections for flexible cables with end sleeve, min: 24
— Connectable cable cross-sections for flexible cables with end sleeve, max: 16
Wire end processing
— Stripped length of cables, min: 6 mm
— Stripped length of cables, max: 6 mm
— End sleeve acc. to DIN 46228 without plastic sleeve: Design A, 5 mm to 7 mm long
— End sleeve acc. to DIN 46228 with plastic sleeve: Design E, up to 6 mm long
Mounting
— Tool: Screwdriver, conical design, 3 mm to 3.5 mm
— Tightening torque, min: 0.4 N·m
— Tightening torque, max: 0.7 N·m
Dimensions
Width: 23 mm
Height: 131 mm
Depth: 36 mm
Weights
Weight, approx: 70 g
