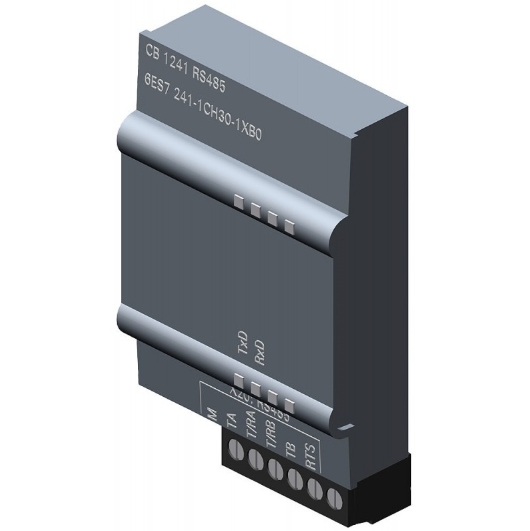

Siemens 6ES7241-1CH30-1XB0 SIMATIC S7-1200
SIMATIC S7-1200, COMMUNICATION COMMUNICATION BOARD CB 1241, RS485, SCREW CONNECTOR SUPPORTS MESSAGE BASED FREEPORT. Ordering code 6ES7241-1CH30-1XB0
Technical specifcations for 6ES7241-1CH30-1XB0
General information
Product type designation: CB 1241 RS 485
Input current
from backplane bus 5 V DC, typ: 50 mA
Power loss
Power loss, typ: 1.5 W
Interfaces
Point-to-point connection
● Cable length, max: 1 000 m
Integrated protocol driver
— Freeport: Yes
— ASCII: Yes; Available as library function
— Modbus RTU master: Yes
— MODBUS RTU slave: Yes
— USS: Yes: Available as library function
Ambient conditions
Free fall
● Fall height, max: 0.3 m; five times, in product package
Ambient temperature during storage/transportation
● min: -20 °C
● max: 60 °C
● horizontal installation, min: -20 °C
● horizontal installation, max: 60 °C
● vertical installation, min: -20 °C
● vertical installation, max: 50 °C
Air pressure acc. to IEC 60068-2-13
● Operation, min: 795 hPa
● Operation, max: 1 080 hPa
● Storage/transport, min: 660 hPa
● Storage/transport, max: 1 080 hPa
Relative humidity
● Operation at 25 ℃ without condensation, max: 95 %
Dimensions
Width: 38 mm
Height: 62 mm
Depth: 21 mm
Weights
Weight, approx: 40 g
