Siemens 6ES7222-1HF32-0XB0 Digital modules

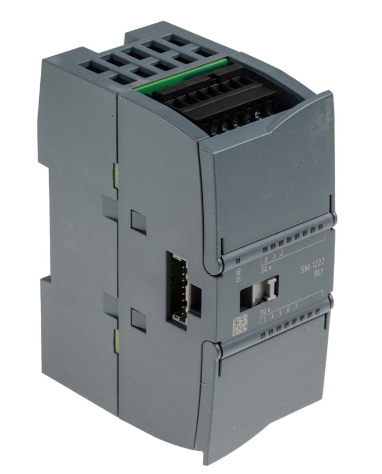

Siemens 6ES7222-1HF32-0XB0 SIMATIC S7-1200 8DO SM1222 RLY

SIMATIC S7-1200, DIGITAL OUTPUT SM 1222, 8 DO, RELAY 2A

Technical specifcations for 6ES7222-1HF32-0XB0

General information

Product type designation: SM 1222, DQ 8x relay/2 A

Supply voltage

permissible range, lower limit (DC): 20.4 V

permissible range, upper limit (DC): 28.8 V

Input current

from backplane bus 5 V DC, max: 120 mA

Digital outputs

● from load voltage L+, max: 11 mA/relay coil

Power loss

Power loss, typ: 4.5 W

Digital outputs

Number of digital outputs: 8

● in groups of: 2

Short-circuit protection: No; to be provided externally

Switching capacity of the outputs

● with resistive load, max: 2 A

● on lamp load, max: 30 W with DC, 200 W with AC

Output voltage

● Rated value (DC): 5 V DC to 30 V DC

● Rated value (AC): 5 V AC to 250 V AC

Output current

● for signal "1" rated value: 2 A

Output delay with resistive load

● "0" to "1", max: 10 ms

● "1" to "0", max: 10 ms

Total current of the outputs (per group)

horizontal installation

— up to 50 °C, max: 10 A; Current per mass

Relay outputs

● Number of relay outputs: 8

● Rated supply voltage of relay coil L+ (DC): 24 V

● Number of operating cycles, max: mechanically 10 million, at rated load voltage 100 000

Switching capacity of contacts

— with inductive load, max: 2 A

— on lamp load, max: 30 W with DC, 200 W with AC

— with resistive load, max: 2 A

Cable length

● shielded, max: 500 m

● unshielded, max: 150 m

Potential separation

Potential separation digital outputs

● between the channels: Relays

● between the channels, in groups of: 2

● between the channels and backplane bus: 1 500 V AC for 1 minute

Permissible potential difference

between different circuits: 750 V AC for 1 minute

Degree and class of protection

IP degree of protection: IP20

Dimensions

Width: 45 mm

Height: 100 mm

Depth: 75 mm

Weights

Weight, approx: 190 g
