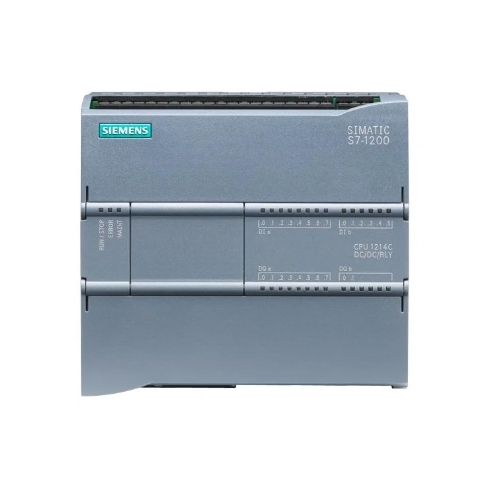

Siemens 6ES7214-1HG40-0XB0S7-1200 CPU 1214C, DC/DC/RELAY
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/RELAY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 – 10V DC, POWER SUPPLY: DC 20.4 – 28.8 V DC, PROGRAM/DATA MEMORY: 100 KB
Technical specifcations for 6ES7214-1HG40-0XB0
General information
Product type designation: CPU 1214C DC/DC/relay
Firmware version: V4.5
Engineering with
● Programming package: STEP 7 V16 or higher
Supply voltage
Rated value (DC)
permissible range, lower limit (DC): 20.4 V
permissible range, upper limit (DC): 28.8 V
Input current
Current consumption (rated value): 500 mA; CPU only
Current consumption, max: 1 500 mA: CPU with all expansion modules
Inrush current, max: 12 A; at 28.8 V
I²t: 0.8 A²·s
Output current
for backplane bus (5 V DC), max: 1 600 mA; Max. 5 V DC for SM and CM
Encoder supply
24 V encoder supply
● 24 V: L+ minus 4 w DC min.
Power loss
Power loss, typ: 12 W
CPU processing times
for bit operations, typ: 0.08 µs; / instruction
for word operations, typ: 1.7 µs; / instruction
for floating point arithmetic, typ: 2.3 µs; / instruction
Digital inputs
Number of digital inputs: 14; Integrated
● of which inputs usable for technological functions: 6; HSC (High Speed Counting)
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max: 14
Input voltage
● Rated value (DC): 24 V
● for signal "0": 5 V DC at 1 mA
● for signal "1": 15 V DC at 2.5 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable: 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
— at "0" to "1", min: 0.2 ms
— at "0" to "1", max: 12.8 ms
Dimensions
Width: 110 mm
Height: 100 mm
Depth: 75 mm
Weights
Weight, approx: 435 g
