Siemens 6ES7212-1BE40-0XB0 Standard CPUs

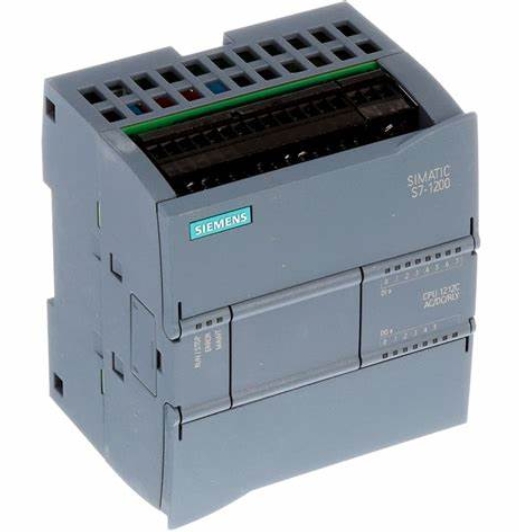

Siemens 6ES7212-1BE40-0XB0 S7-1200 CPU 1212C, AC/DC/RELAY

SIMATIC S7-1200, CPU 1212C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 8 DI 24V DC; 6 DO RELAY 2A; 2 AI 0 – 10V DC, POWER SUPPLY: AC 85 – 264 V AC AT 47 – 63 HZ, PROGRAM/DATA MEMORY: 75 KB

Technical specifcations for 6ES7212-1BE40-0XB0

General information

Product type designation: CPU 1212C AC/DC/relay

Firmware version: V4.4

Engineering with

● Programming package: STEP 7 V16 or higher

Supply voltage

Rated value (AC)

permissible range, lower limit (AC): 85 V

permissible range, upper limit (AC): 264 V

Line frequency

● permissible range, lower limit: 47 Hz

● permissible range, upper limit: 63 Hz

Input current

Current consumption (rated value): 80 mA at 120 V AC; 40 mA at 240 V AC

Current consumption, max: 240 mA at 120 V AC; 120 mA at 240 V AC

Inrush current, max: 20 A; at 264 V

I²t: 0.8 A²·s

Output current

for backplane bus (5 V DC), max: 1 000 mA; Max. 5 V DC for SM and CM

Encoder supply

24 V encoder supply

● 24 V: 20.4 to 28.8V

Power loss

Power loss, typ: 11 W

CPU processing times

for bit operations, typ: 0.08 µs; / instruction

for word operations, typ: 1.7 µs; / instruction

for floating point arithmetic, typ: 2.3 µs; / instruction

Digital inputs

Number of digital inputs: 8; Integrated

● of which inputs usable for technological functions: 6; HSC (High Speed Counting)

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max: 8

Input voltage

● Rated value (DC): 24 V

● for signal "0": 5 V DC at 1 mA

● for signal "1": 15 V DC at 2.5 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable: 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

— at "0" to "1", min: 0.2 ms

— at "0" to "1", max: 12.8 ms

Dimensions

Width: 90 mm

Height: 100 mm

Depth: 75 mm

Weights

Weight, approx: 425 g
