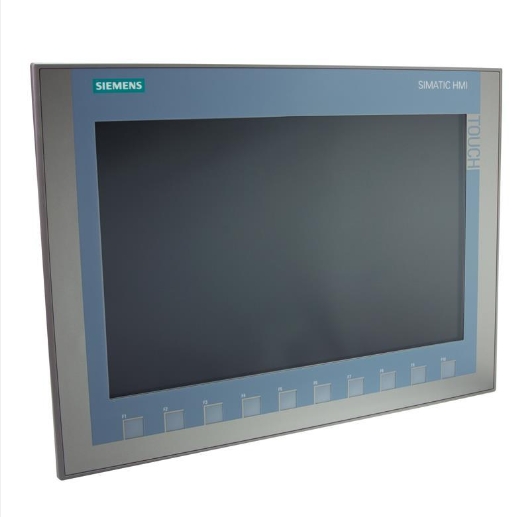

Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic
SIMATIC HMI, KTP1200 Basic, Basic Panel, Key/touch operation, 12" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
Technical specifcations for 6AV2123-2MB03-0AX0
Display
Design of display: TFT widescreen display, LED backlighting
Screen diagonal: 12 in
Display width: 261.1 mm
Display height: 163.2 mm
Number of colors: 65 536
Resolution (pixels)
● Horizontal image resolution: 1280 pixel
● Vertical image resolution: 800 pixel
Backlighting
● MTBF backlighting (at 25 °C): 20 000 h
● Backlight dimmable: Yes
Control elements
Keyboard fonts
● Numeric keyboard: Yes; Onscreen keyboard
● alphanumeric keyboard: Yes; Onscreen keyboard
Touch operation
● Design as touch screen: Yes
Supply voltage
Type of supply voltage: DC
Rated value (DC): 24 V
permissible range, lower limit (DC): 19.2 V
permissible range, upper limit (DC): 28.8 V
Input current
Current consumption (rated value): 510 mA
Starting current inrush I²t: 0.2 A²·s
Power
Active power input, typ: 12.2 W
Processor
Processor type: ARM
Memory
Flash: Yes
RAM: Yes
Memory available for user data: 10 Mbyte
Ambient conditions
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min: 0 °C
— For vertical installation, max: 50 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min: 0 °C
— At maximum tilt angle, min: 40 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min: 0 °C
— For vertical installation, max: 40 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min: 0 °C
— At maximum tilt angle, min: 35 °C
Ambient temperature during storage/transportation
● min: -20 °C
● max: 60 °C
Relative humidity
● Operation, max: 90 %; no condensation
Dimensions
Width of the housing front: 330 mm
Height of housing front: 245 mm
Mounting cutout, width: 310 mm
Mounting cutout, height: 221 mm
Overall depth: 60 mm
Weights
Weight without packaging: 1710 g
Weight incl. packaging: 2.2 kg
