SIEMENS 1FL6024-2AF21-1LA1 Servo Motor Fast ship/ Brand new

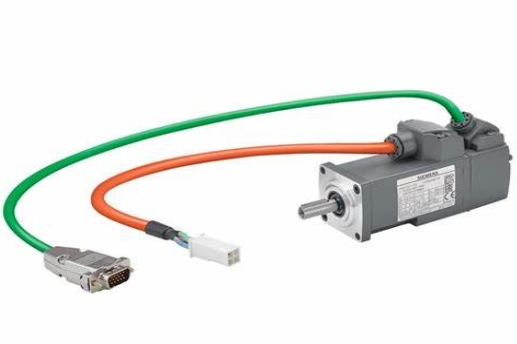

SIEMENS 1FL6024-2AF21-1LA1 Servo Motor

SIMOTICS S-1FL6 Operating voltage 230 V 3 AC PN=0.1 kW; NN=3000 rpm M0=0.32 Nm; MN=0.32 Nm Shaft height 20 mm Encoder absolute 20-bit (12-bit multi-turn) with feather key Tolerance N without holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V90.

Description:

Manufacturer : Siemens

Product No. : 1FL6024-2AF21-1LA1

Product Type : SIMOTICS S-1FL6

Rated speed : 3000 rpm

Rated torque (100 K) : 0.32 Nm

Rated current : 1.2 A

Rated power : 0.10 kW / 0.14 hp

Max. speed : 5000 rpm

Maximum torque : 0.96 Nm

Max. current : 3.6 A

Static torque : 0.32 Nm

Moment of inertia : 0.052 kgcm²

Torque constant : 0.29 Nm/A

Thermal class : B (130 °C)

Ambient temperature : Operation - 0 ... 40 °C

Relative humidity : Max. operation - 90 % RH maximum (no condensation at 30 °C)

Compliance with standards : CE, EAC

Motor type : Low Inertia

Motor type : Permanent-magnet synchronous motor

Shaft height : 20

Encoder system : Absolute encoder 20 bit + 12 bit multi-turn

Cooling : Natural cooling

Shaft end : Feather key

Radial runout tolerance : Class N

Vibration severity grade : Grade A

Degree of protection : IP65

Design acc. to Code I : IM B5 (IM V1, IM V3)

Connection type : Cable outlet

Shipping Weight : 2 Kg
