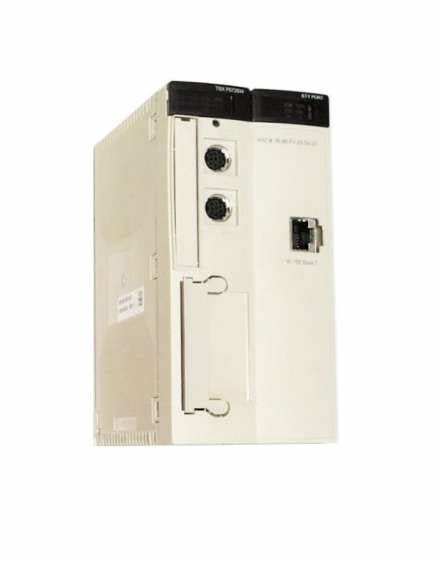

Schneider TSXP574634 Unity processor
Modicon Premium, Internal RAM 192kB data, EtherNet TCP/IP, Unity Pro
Specifications
| Main | |
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Unity processor |
| Software Designation | Unity Pro |
| Complementary | |
| Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots |
| 8 12 slots | |
| Number of slots | 128 |
| 64 | |
| 96 | |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 32 |
| Number of process control channel | 15 up to 45 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN RS485)19.2/115 kbit/s) |
| Ethernet TCP/IP RJ45 | |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 2 |
| 1 | |
| 3 | |
| 8 | |
| Memory description | Internal RAM (with PCMCIA card) 1792 kB program |
| Internal RAM (with PCMCIA card) 192 kB data | |
| Internal RAM (without PCMCIA card) 192 kB program and data | |
| PCMCIA card 16384 kB additional data storage | |
| Maximum size of object areas | 16384 %Mi located internal bits |
| 64 %KWi constant words located internal data | |
| 64 %MWi internal words located internal data | |
| 64 kB (DFB and EFB function blocks) unlocated internal data | |
| 64 kB (elementary and derived data) unlocated internal data | |
| Application structure | 1 master task |
| 1 fast task | |
| 64 event tasks | |
| Execution time per instruction | 0.12 µs Boolean without PCMCIA card |
| 0.17 µs Boolean with PCMCIA card | |
| 0.17 µs word or fixed-point arithmetic without PCMCIA card | |
| 0.32 µs word or fixed-point arithmetic with PCMCIA card | |
| 1.75...3 µs floating points with PCMCIA card | |
| 1.75...3 µs floating points without PCMCIA card | |
| Number of instructions per ms | 3.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| 4.59 Kinst/ms 100 % Boolean with PCMCIA card | |
| 5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
| 6.72 Kinst/ms 100 % Boolean without PCMCIA card | |
| System overhead | 0.35 ms fast task |
| 1 ms master task | |
| Marking | CE |
| Local signalling | for Ethernet TCP/IP port ready (RUN) 1 LED (green) |
| for processor running (RUN) 1 LED (green) | |
| for collision detection (COL) 1 LED (red) | |
| for Ethernet TCP/IP port fault (ERR) 1 LED (red) | |
| for I/O module or configuration fault (I/O) 1 LED (red) | |
| for processor or system fault (ERR) 1 LED (red) | |
| for activity on TER or AUX terminal port (TER) 1 LED (yellow) | |
| for Ethernet link diagnostics (STS) 1 LED (yellow) | |
| for reception activity (RX) 1 LED (yellow) | |
| for transmission activity (TX) 1 LED (yellow) | |
| Current consumption | 1900 mA 5 V DC |
| Module format | Double |
| Net Weight | 1.41 lb(US) (0.64 kg) |
| Environment | |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D |
| CSA C22.2 No 142 | |
| CSA C22.2 No 213 Class I Division 2 Group C | |
| UL 508 | |
| 93/68/EEC | |
| CSA C22.2 No 213 Class I Division 2 Group B | |
| CSA C22.2 No 213 Class I Division 2 Group A | |
| 89/336/EEC | |
| IEC 61131-2 | |
| 92/31/EEC | |
| 73/23/EEC | |
| Product Certifications | LR |
| RINA | |
| RMRS | |
| ABS | |
| GL | |
| BV | |
| DNV | |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation |
| 5…95 % without condensation for storage | |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
| Ordering and shipping details | |
| Category | US1PC2222558 |
| Discount Schedule | PC22 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 in (9.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package 1 Weight | 26.7 oz (757.0 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.8 in (30.0 cm) |
| Package 2 Width | 15.7 in (40.0 cm) |
| Package 2 Length | 23.6 in (60.0 cm) |
| Package 2 Weight | 12.101 lb(US) (5.489 kg) |
| Contractual warranty | |
| Warranty | 18 months |
