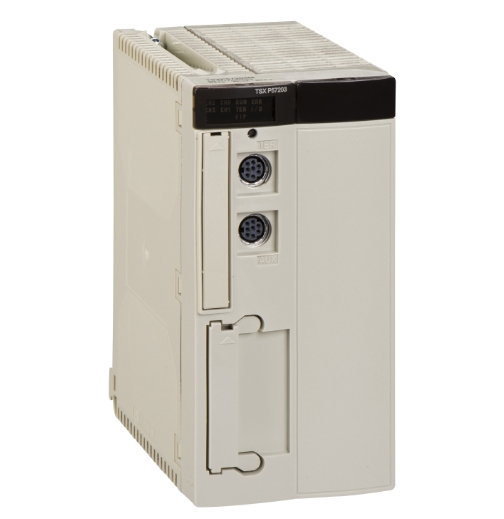

Schneider TSXP57203M processor Module

Schneider TSXP57203M Electric Double-format PL7 processor

The Schneider TSXP57203M is a high-performance processor module from Schneider Electric's Modicon Premium series, designed for Programmable Logic Controllers (PLCs) in demanding industrial automation applications.

Technical specifcations for TSXP57203M

Dimensions: 2.2 cm x 12.4 cm x 12.6 cm

Weight: 0.1 kg

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Double-format PL7 processor

Software Designation: PL7 Junior/Pro

Complementary

Number of racks:

16 4/6/8 slots

8 12 slots

Number of slots: 96; 64; 128

Discrete I/O processor capacity: 1024 I/O

Analogue I/O processor capacity: 80 I/O

Number of application specific channel: 24

Number of process control channel: 10 up to 30 simple loops

Integrated connection type: Non isolated serial link 2 female mini DIN19.2 kbit/s)

Communication module processor capacity

1 fieldbus module (none if CANopen used)

1 network module

4 AS-Interface bus modules

1 CANopen

Memory description

Internal RAM (with PCMCIA card) 48 Kwords data

Internal RAM (without PCMCIA card) 48 Kwords program and data

PCMCIA card 160 Kwords program

PCMCIA card 2688 Kwords additional data storage

Maximum size of object areas

30.5 %MWi internal words located internal data

32 %KWi constant words located internal data

8132 %Mi located internal bits

Application structure

1 fast task

1 master task

64 event tasks

Execution time per instruction

0.19 µs Boolean without PCMCIA card

0.21 µs Boolean with PCMCIA card

0.25 µs word or fixed-point arithmetic without PCMCIA card

0.42 µs word or fixed-point arithmetic with PCMCIA card

2.6 µs floating points with PCMCIA card

2.6 µs floating points without PCMCIA card

Number of instructions per ms

2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card

3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card

3.7 Kinst/ms 100 % Boolean with PCMCIA card

4.76 Kinst/ms 100 % Boolean without PCMCIA card

System overhead

0.35 ms fast task

1 ms master task

Marking: CE

Local signalling

for processor running (RUN) 1 LED (green)

for I/O module or configuration fault (I/O) 1 LED (red)

for processor or system fault (ERR) 1 LED (red)

for activity on the terminal port (TER) 1 LED (yellow)

Current consumption: 750 mA 5 V DC

Module format: Double

Net Weight: 1.15 lb(US) (0.52 kg)
