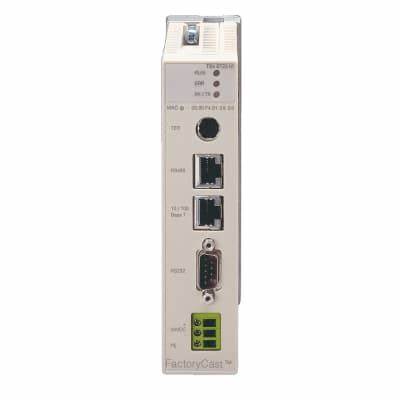

Schneider TSXETZ510 EtherNet module
FactoryCast Gateway, EtherNet, 2.4 to 4W, 50 to 200mA at 24VDC
Specifications
| Main | |
| Range of Product | FactoryCast Gateway |
| Product or Component Type | Ethernet module |
| Kit composition | Web Designer software (CD-ROM) |
| User manual | |
| Gateway module | |
| Concept | Transparent Ready |
| Type of modem | Via telephone line |
| Via satellite | |
| Via radio | |
| Structure type | Heterogeneous industrial bus Ethernet IEEE 802.3 |
| Topology | Star Ethernet |
| Tree-structure Ethernet | |
| Transmission Rate | 10/100 Mbit/s Ethernet |
| 56 kbit/s maximum serial link by modem | |
| Web services | Web pages defined by the user (8 MB available) |
| PLC diagnostics system function RackViewer | |
| Access function to the PLC data and variables Data Editor | |
| Maximum simultaneous connection of 8 standard browsers | |
| Communication diagnostics function | |
| IP configuration for TSX ETZ 410/510 module via standard browser | |
| Graphic objects editor | |
| Communication service | 1 kB client/server requests Uni-Telway |
| 128 byte client/server requests Uni-Telway | |
| 128 byte synchronous requests Modbus | |
| Client/server mode Modbus | |
| Client/server mode Uni-Telway | |
| [Us] rated supply voltage | 24 V DC |
| Complementary | |
| Communication Port Protocol | Serial link by modem |
| Ethernet | |
| Physical interface | RTC link RS232 serial link by modem |
| Exchange mode | Half or full duplex serial link by modem |
| Manchester-type baseband Ethernet | |
| Transmission support medium | Double shielded twisted pair of type STP 10BASE-T ETHERNET |
| Ethernet cable category 5 100BASE-T ETHERNET | |
| Shielded RS232 cable serial link by modem | |
| Maximum Number of Connected Devices | Ethernet <64 star |
| Serial link by modem <2 star | |
| Maximum cable distance between devices | 328.08 ft (100 m) between terminal device and hubs ETHERNET |
| Ethernet service | Remote terminal |
| Download of Uni-Telway PL7 applications | |
| Inter-PLC communication in Uni-Telway or Modbus TCP/IP | |
| Diagnostics module | |
| Adjustment, debugging and modifications to the program | |
| Scanned inputs/outputs service performed | |
| Supply voltage limits | 19.2…30 V DC |
| Input overvoltage protection | 34 V |
| Power dissipation in W | 2.4…4 W |
| Electrical connection | 1 connector mini DIN for terminal port (TER address) |
| 1 connector RJ45 for Uni-Telway auxiliary port RS485 serial link | |
| 1 connector SUB-D 9 for RS232 serial link (Modem) | |
| 1 connector RJ45 | |
| Screw terminal block for connecting to the external power supply | |
| Local signalling | for RUN 1 LED |
| for ERR 1 LED | |
| for RX/TX 1 LED | |
| Current consumption | 100 mA 24 V DC |
| 50...200 mA 24 V DC | |
| Mounting Support | Mounting plate |
| Width | 1.57 in (39.83 mm) |
| Height | 6.0 in (151.5 mm) |
| Depth | 4.6 in (116.7 mm) |
| Net Weight | 0.62 lb(US) (0.28 kg) |
| Environment | |
| Immunity to microbreaks | 1 ms |
| Standards | IEC 61131-2 |
| IEC 1000-4-4 level 3 | |
| ANSI/IEEE Std 802.3 (4th edition 1993-07-08) | |
| IEC 68-2-27, EA tests | |
| IEC 1000-4-2 level 3 | |
| UL 508 | |
| IEC 1000-4-5 | |
| EN/IEC 50082-1 | |
| ISO/IEC 8802-3 | |
| CSA C22.2 | |
| IEC 1000-4-12 | |
| IEC 68-2-6, FC test | |
| IEC 1000-4-3 level 3 | |
| Product Certifications | RINA |
| GL | |
| BV | |
| DNV | |
| LR | |
| GOST | |
| RRS | |
| Marking | CE |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) IEC 61131-2 |
| Relative Humidity | 5…95 % without condensation for storage IEC 61131-2 |
| 10…95 % without condensation for operation | |
| Operating altitude | 6561.68 ft (2000 m) |
| Ordering and shipping details | |
| Category | US1PC1422556 |
| Discount Schedule | PC14 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package 1 Weight | 23.2 oz (657.0 g) |
| Contractual warranty | |
| Warranty | 18 months |
